Solar Panels for Boats
Solar Panels for Boats
Increase energy efficiency on your boat with our Solar Panels. Utilizing the power of the sun, our panels provide clean and renewable energy for your boat, reducing your carbon footprint and saving you money on fuel costs. A must-have for any environmentally-conscious boat owner.
SPECIFICATIONS
Number of Panels: 1

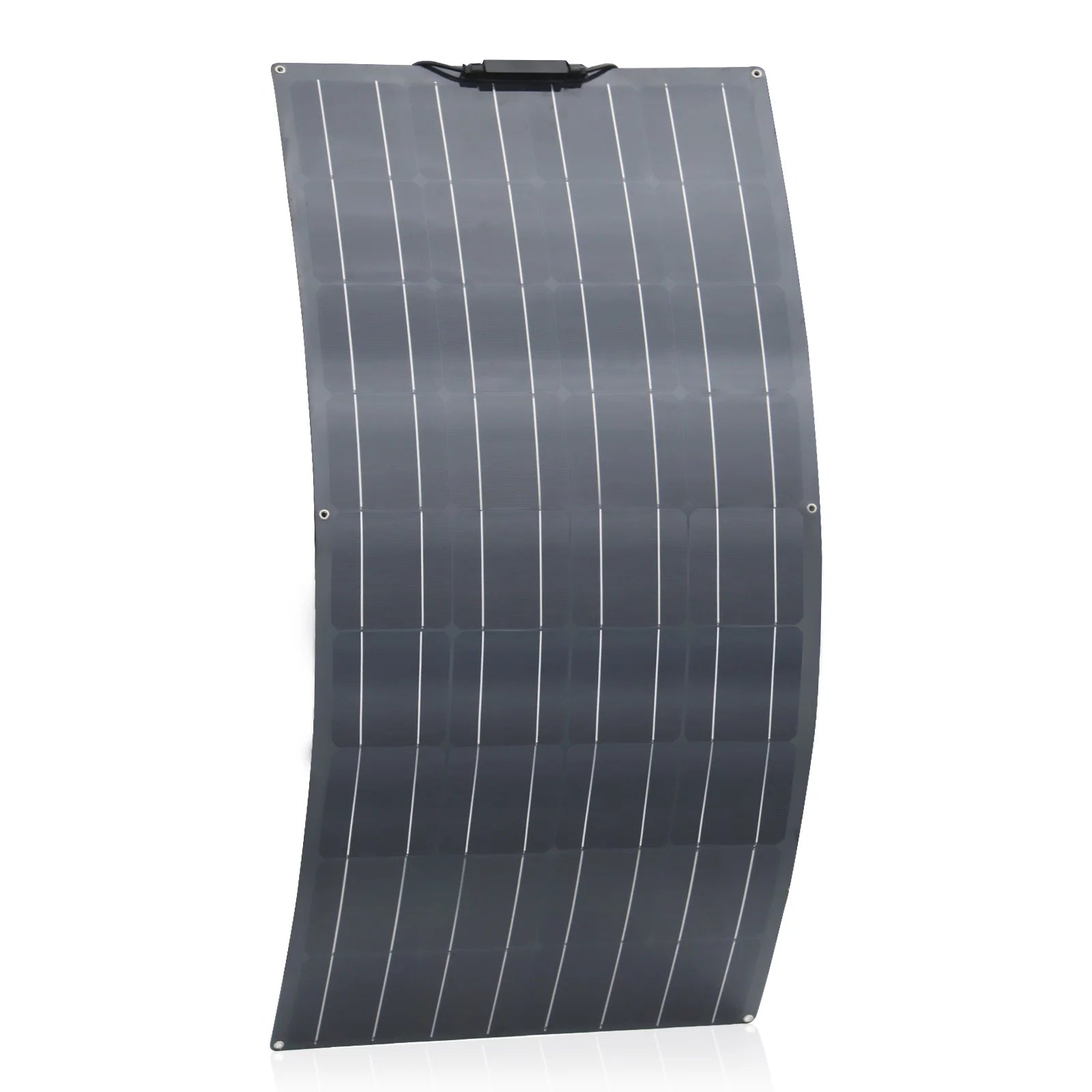

Flexible Solar Panel: Yes
Foldable Solar Panel: No
Hign-concerned Chemical: none
Type: Solar Panel
Material: Monocrystalline Silicon

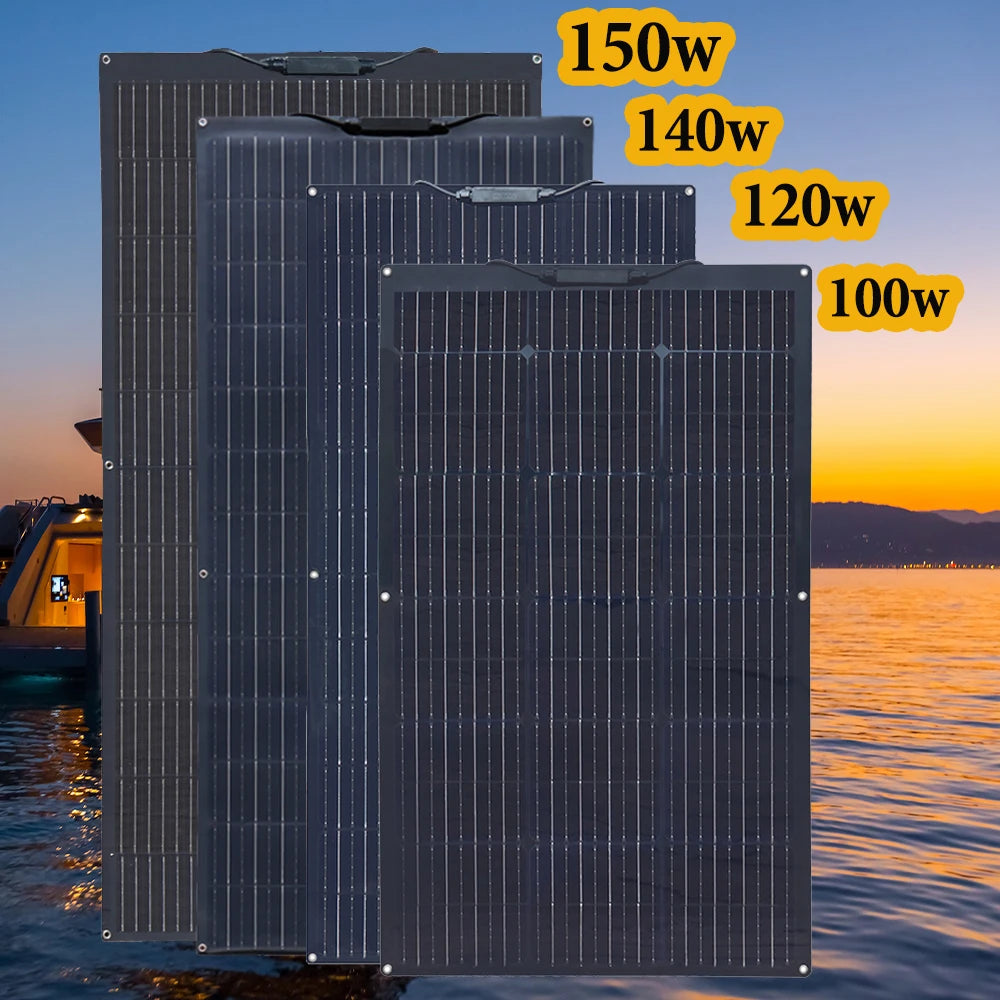

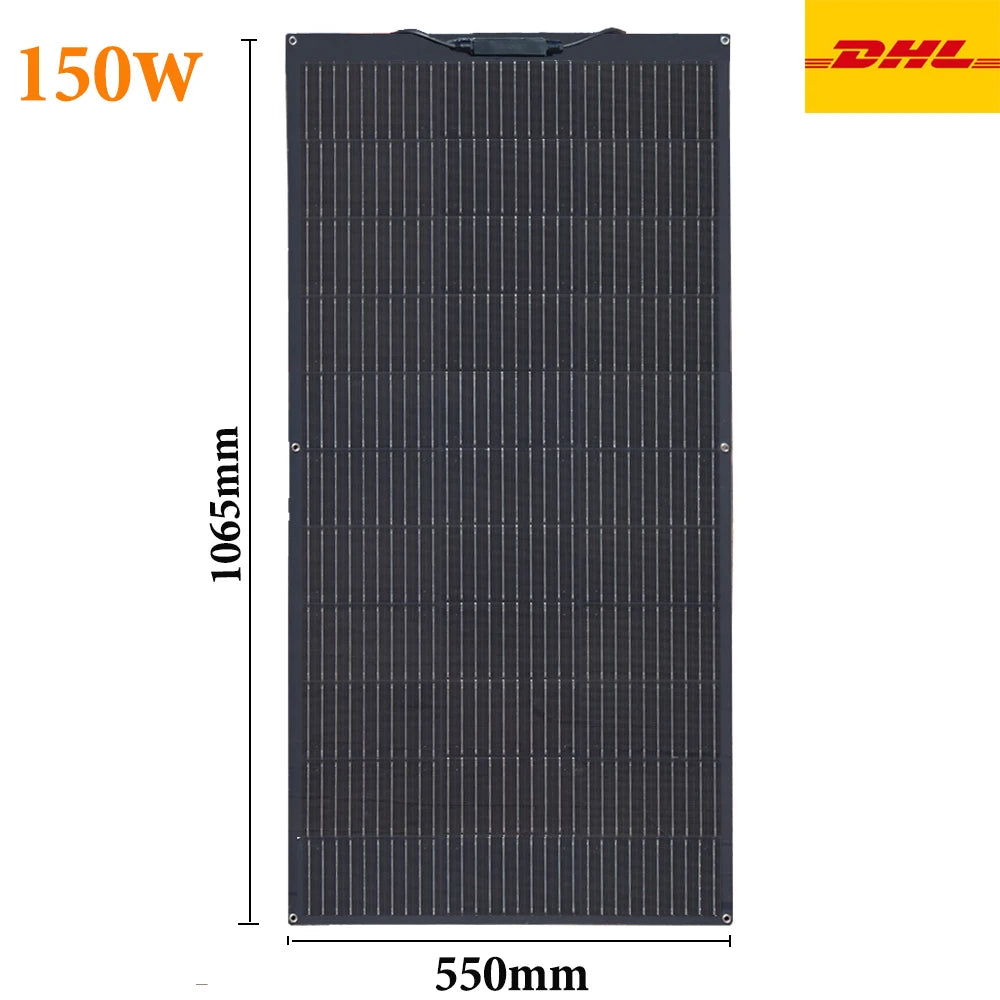

Max. Power: 80w/100w/120w/140w/150w
Certification: CE
size of 140w: 1140*530*2.5mm
size of 120w: 1060*530*2.5mm

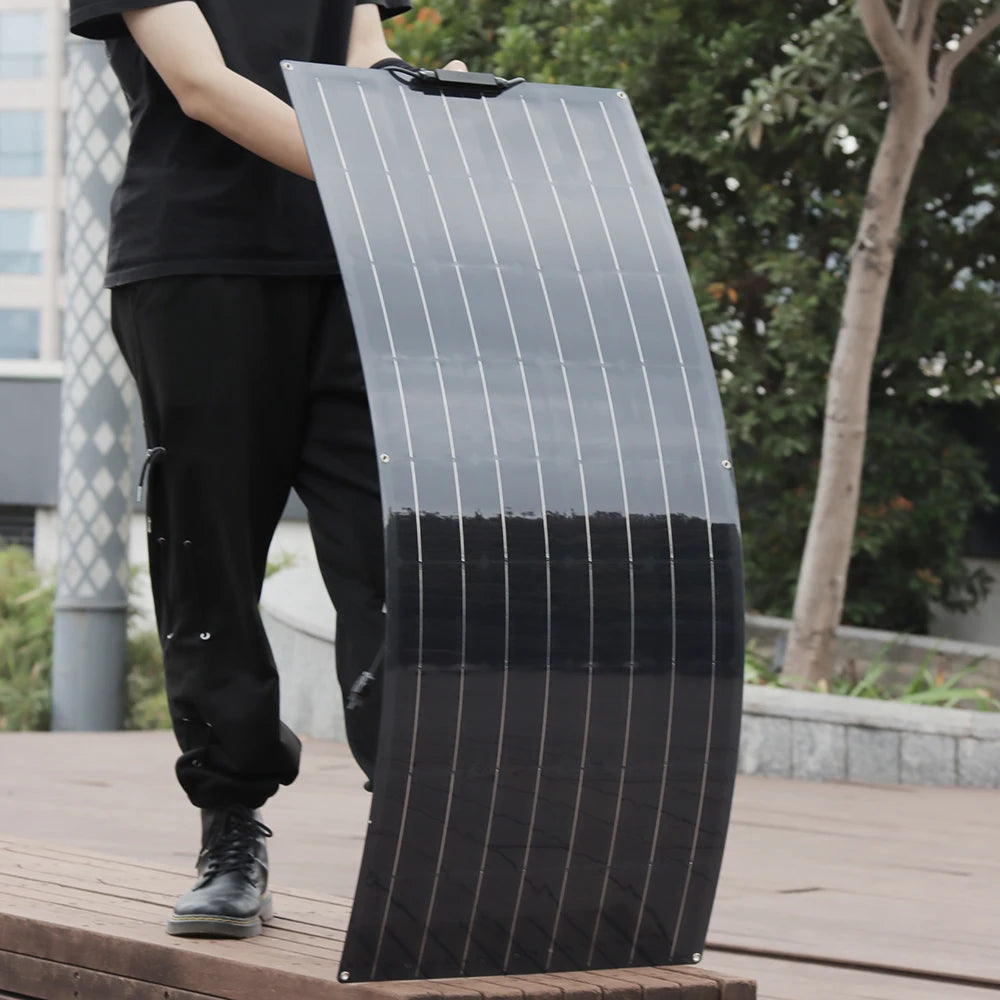

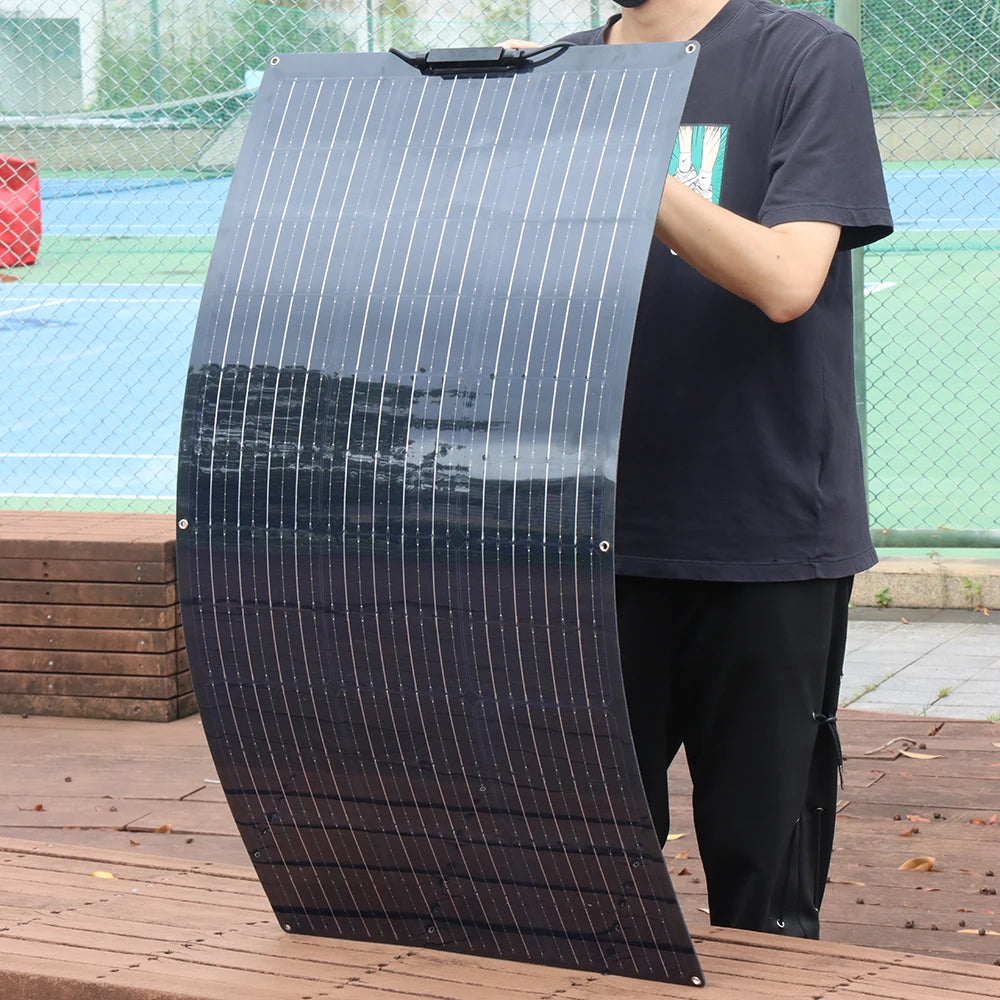

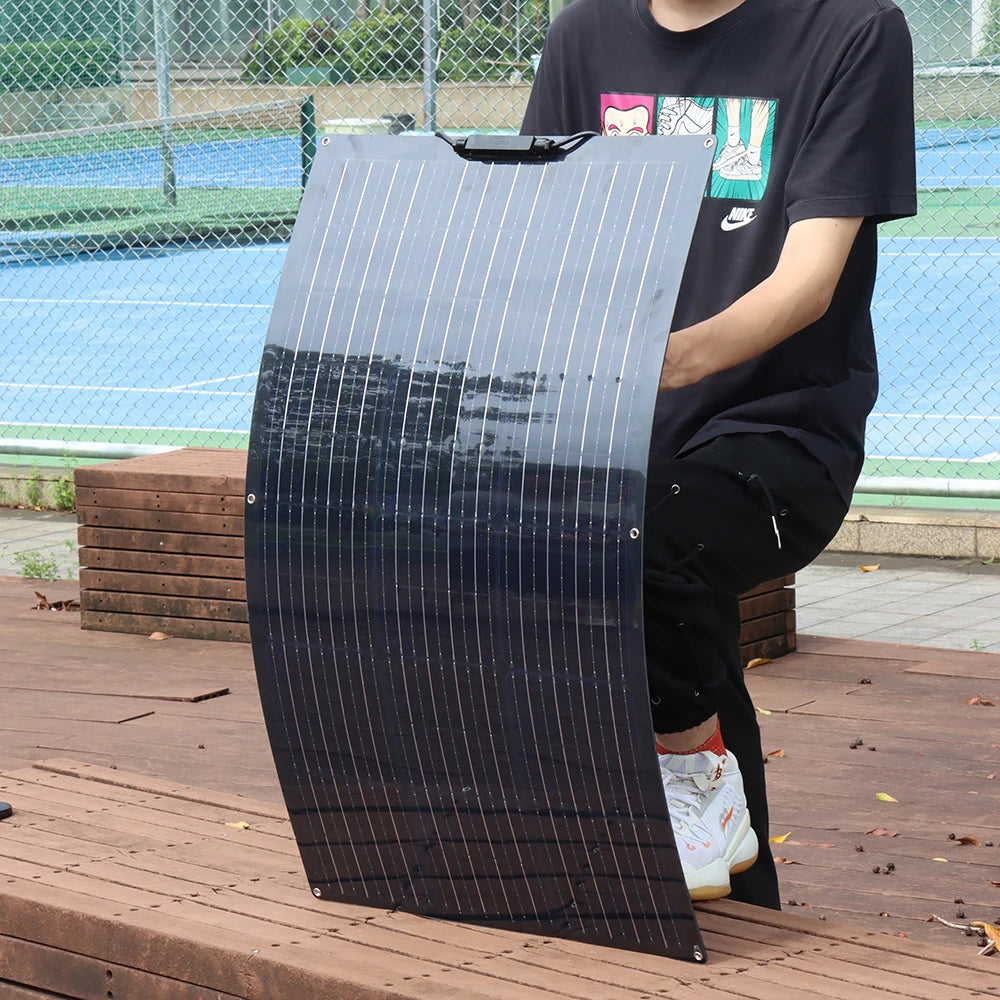

1.semi flexible: can be bending angle up to 20 degrees

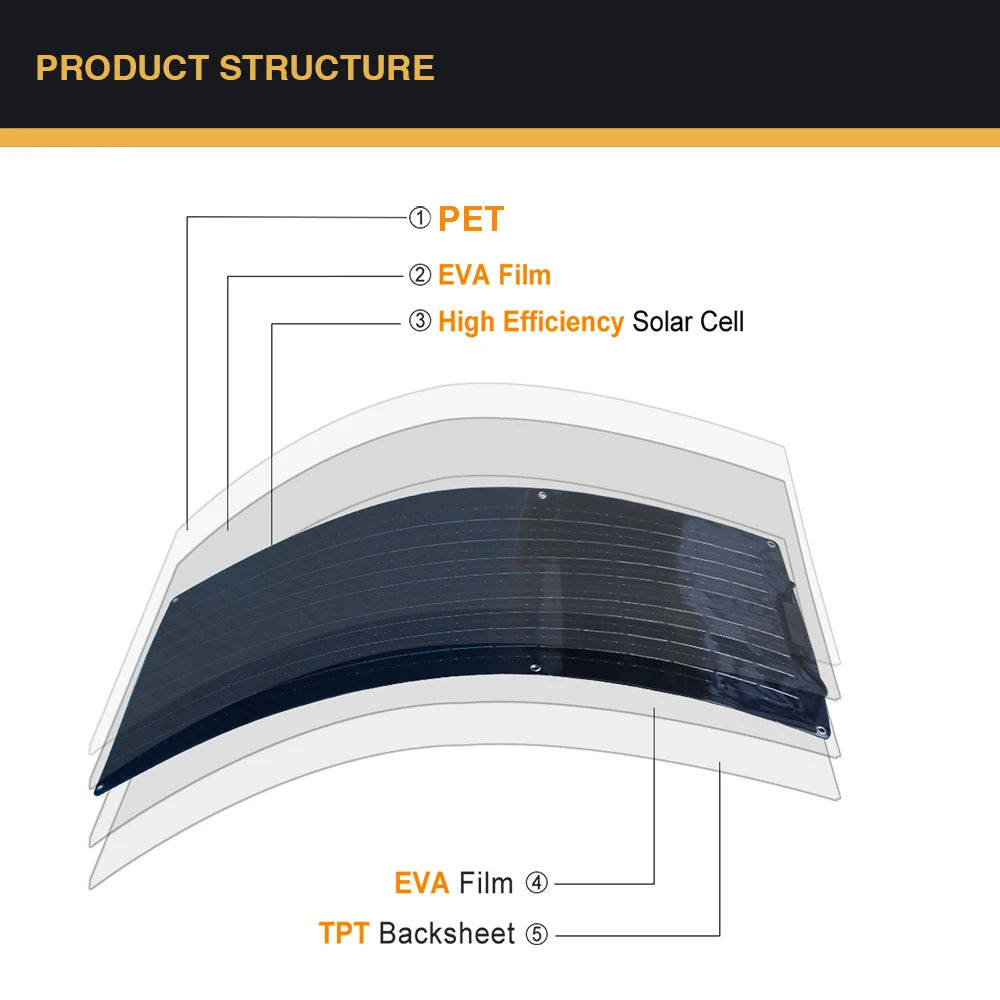

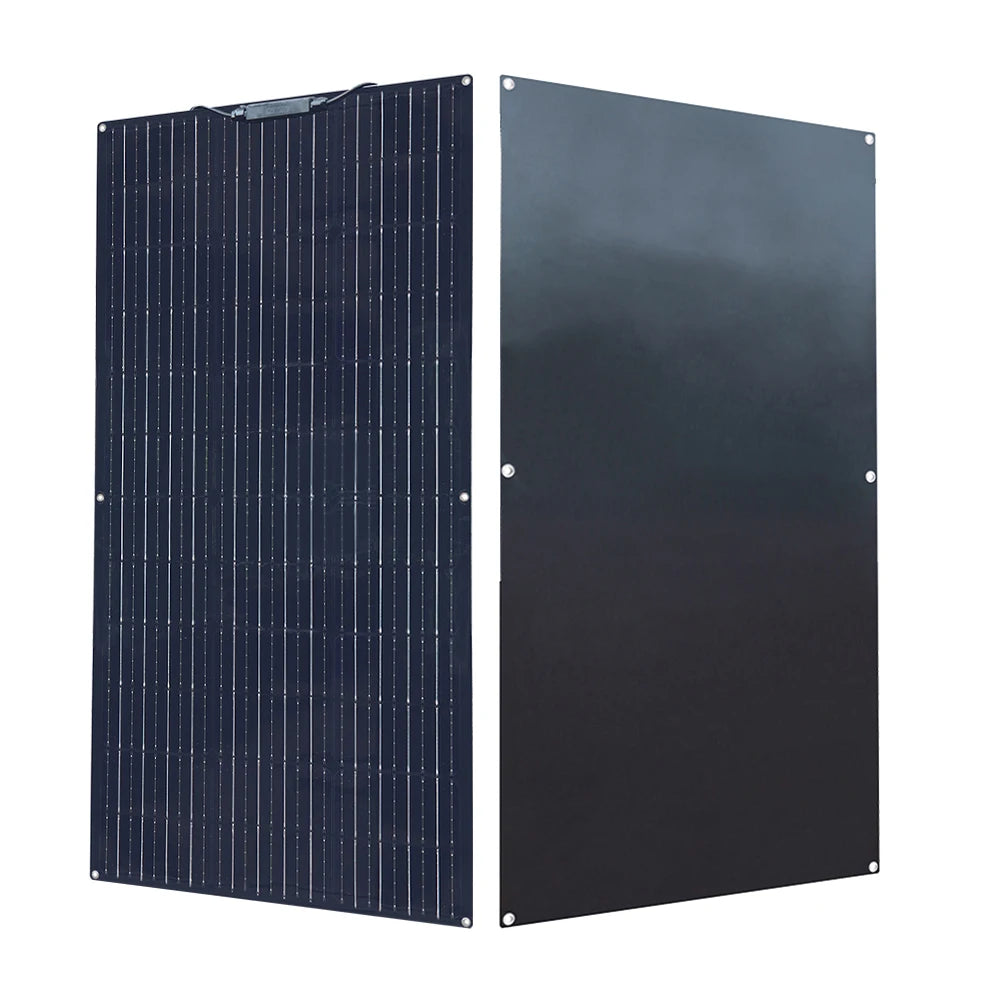

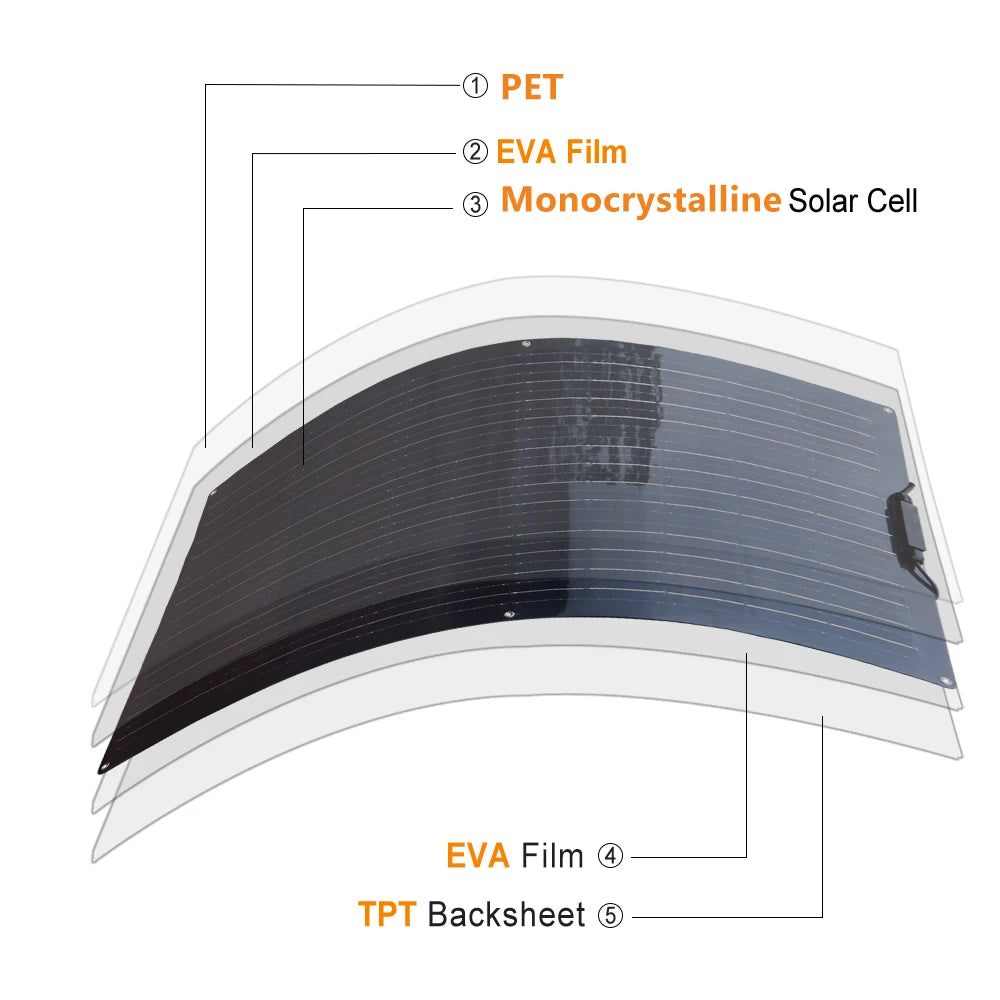

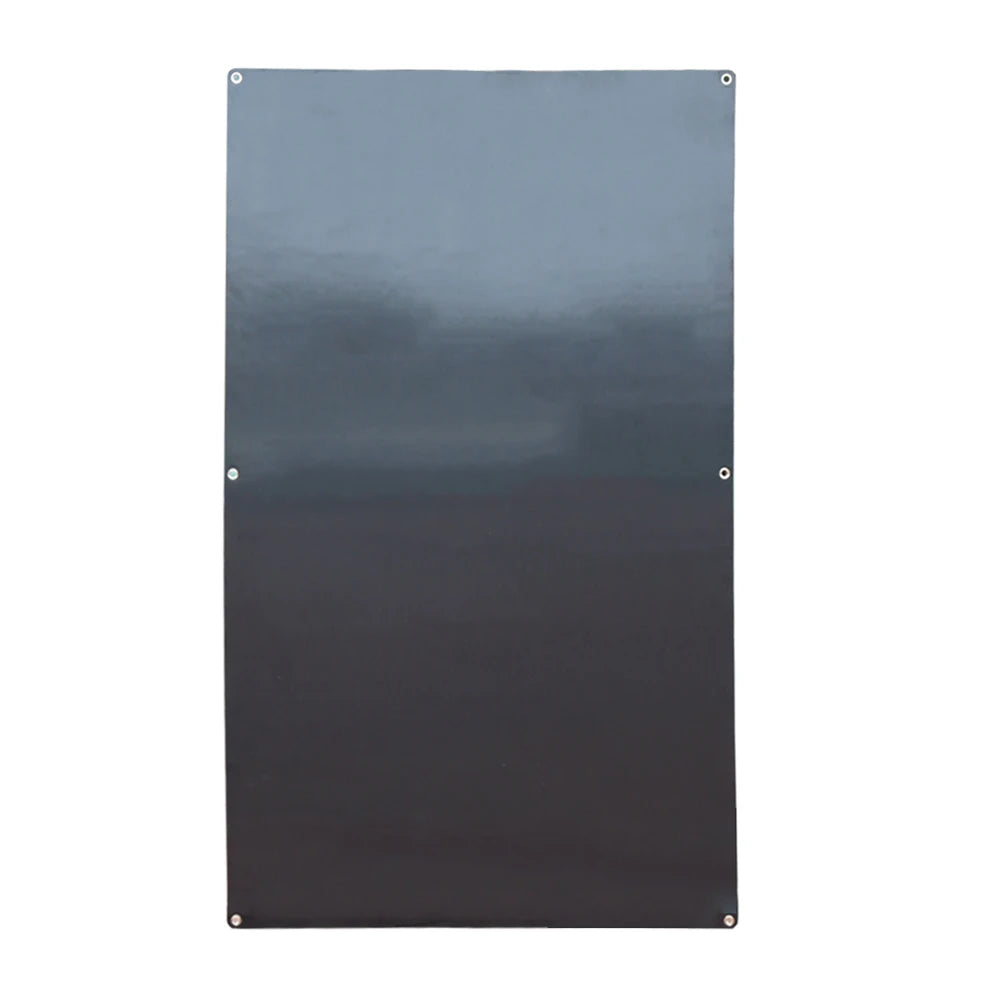

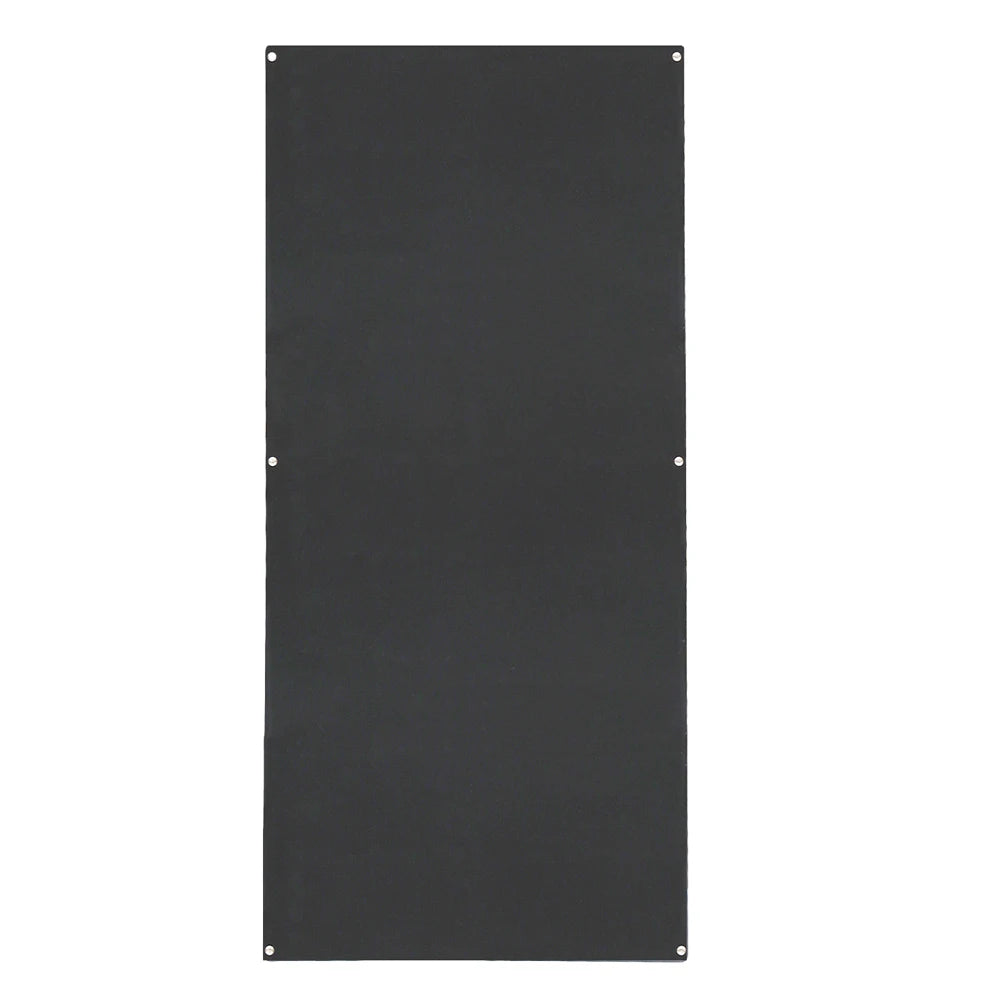

2.Durable with PET backsheet, no glass
3.Light weight,easy carrying,easy shipment,easy installation
4.Thin : the thickness is only 3mm, easy joint to your yacht or RV roof , boat etc

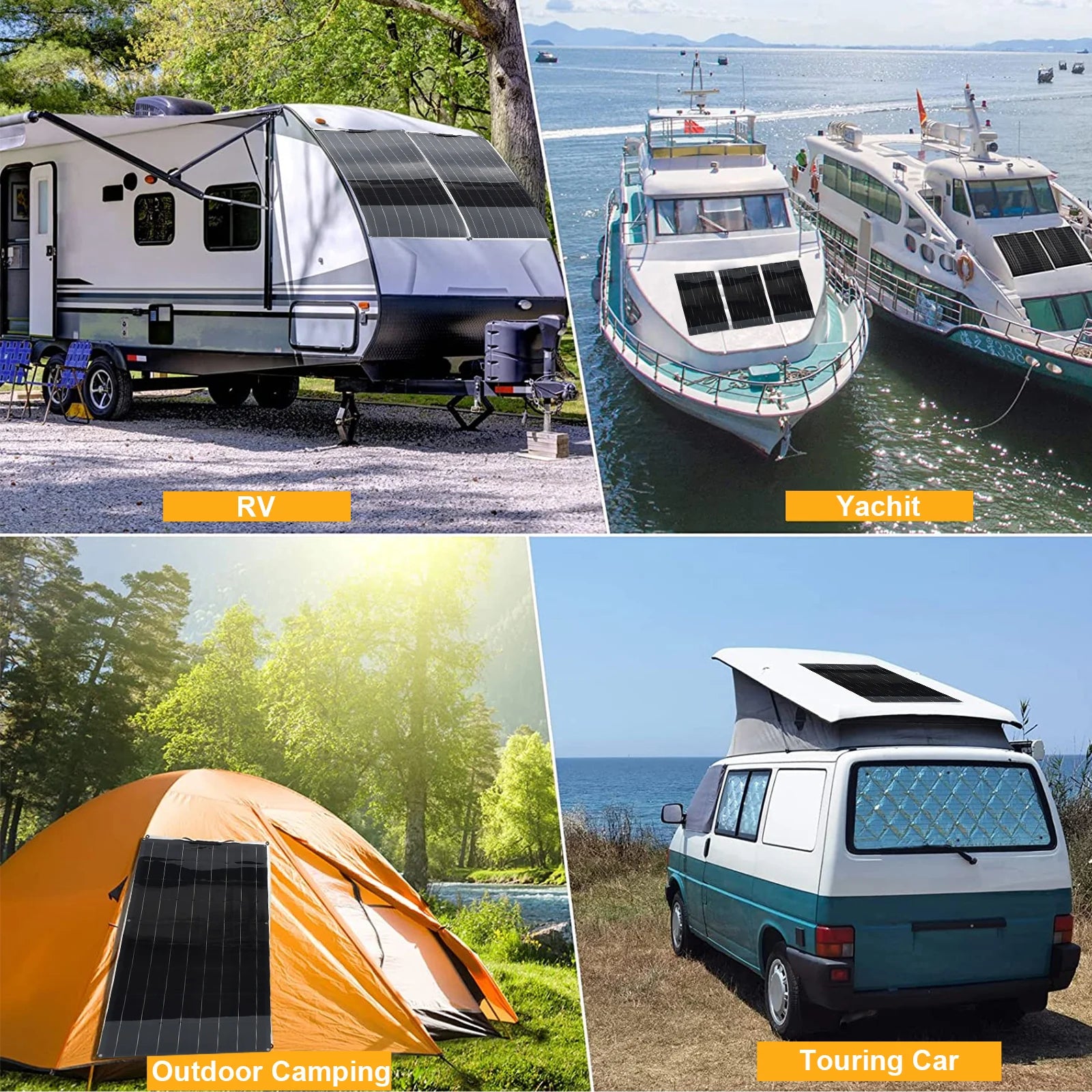

5.wide use applications:Golf car,Yacht, boat,caravan, electric car,travel tourism car, patrol car, roof,camping,roof power generations,tent,portable bag , backpacks , portable generator kits etc.
6.charge for 12v battery,Solve the problem that the car can't start due to lack of power.

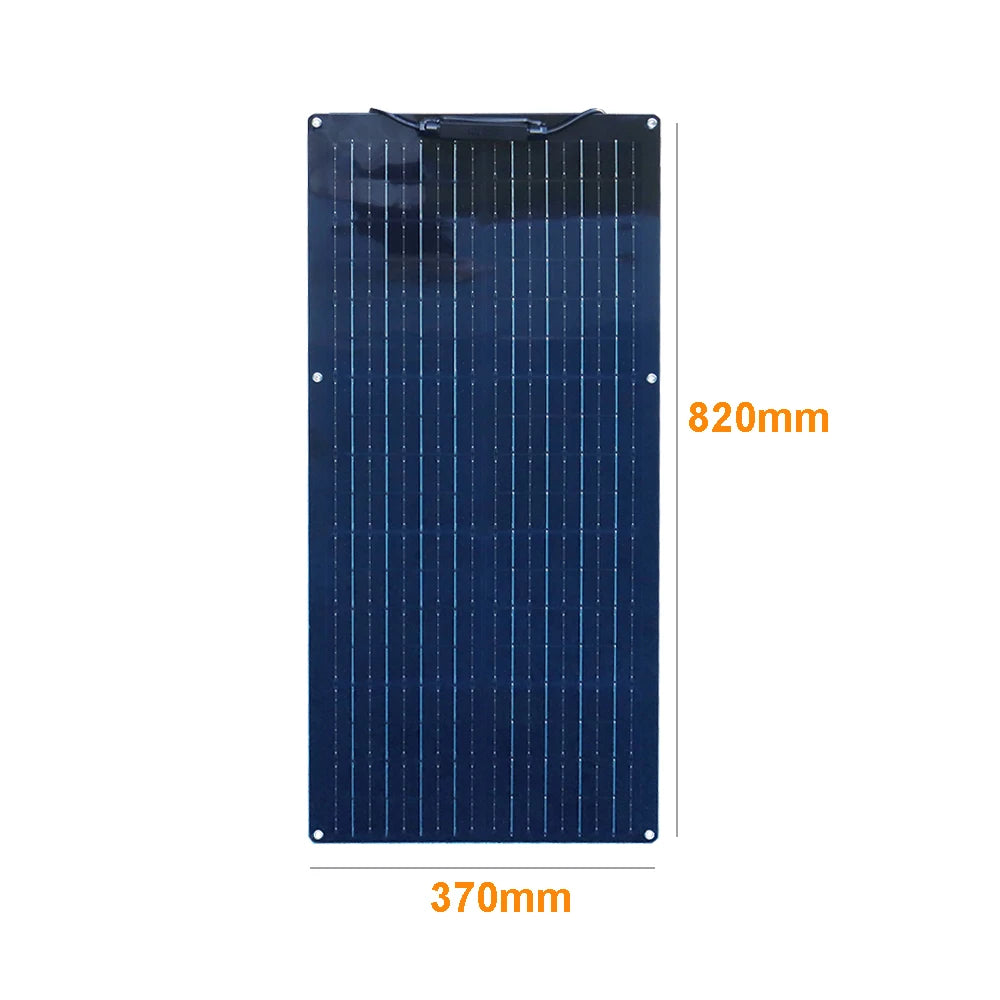

80w flexible solar panel
Color:Black/White
Maximum power(Pmax)： 80W
Maximum system voltage ： 700V DC
Open circuit voltage(Voc)： 23.76V
Maximum power voltage(Vmp) 19.8v
Cell efficiency ： 22%
Operating temperature（NOCT）： 45±2℃
Temperature range： -40℃～+80℃
Weight ： 1.14 kg

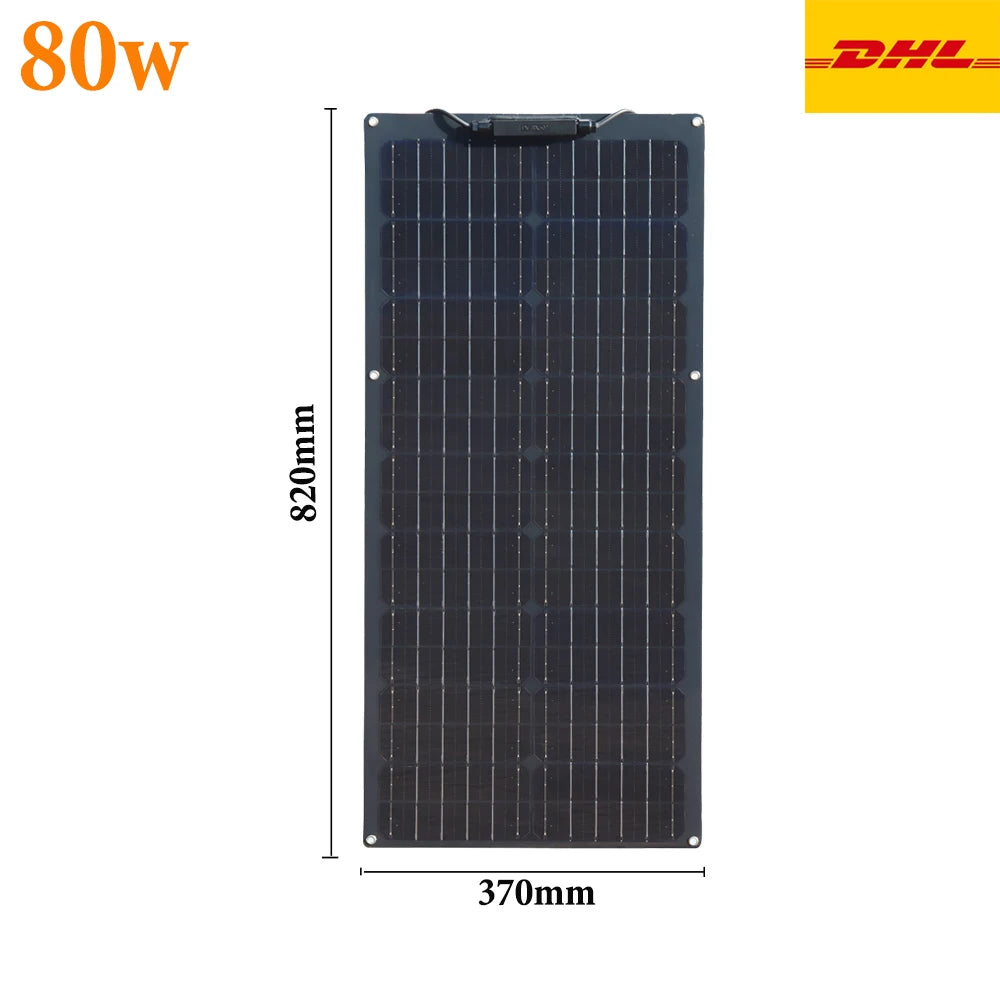

Size ： 820*370*3mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

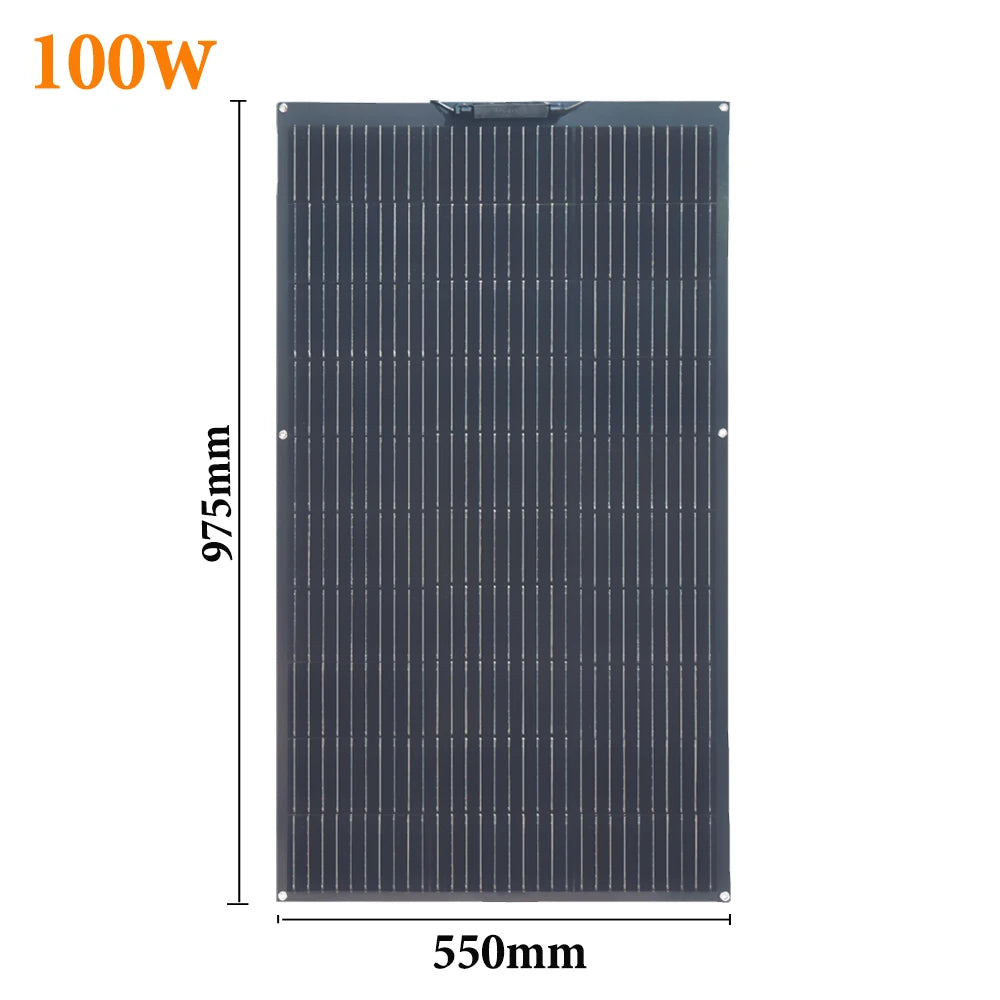

100w flexible solar panel
Color:Black/White
Maximum power(Pmax)： 100W
Maximum system voltage ： 700V DC
Open circuit voltage(Voc)： 21.6V
Maximum power voltage(Vmp)： 18V
Cell efficiency ： 22%
Operating temperature（NOCT）： 45±2℃
Temperature range： -40℃～+80℃
Weight ： 1.72 kg

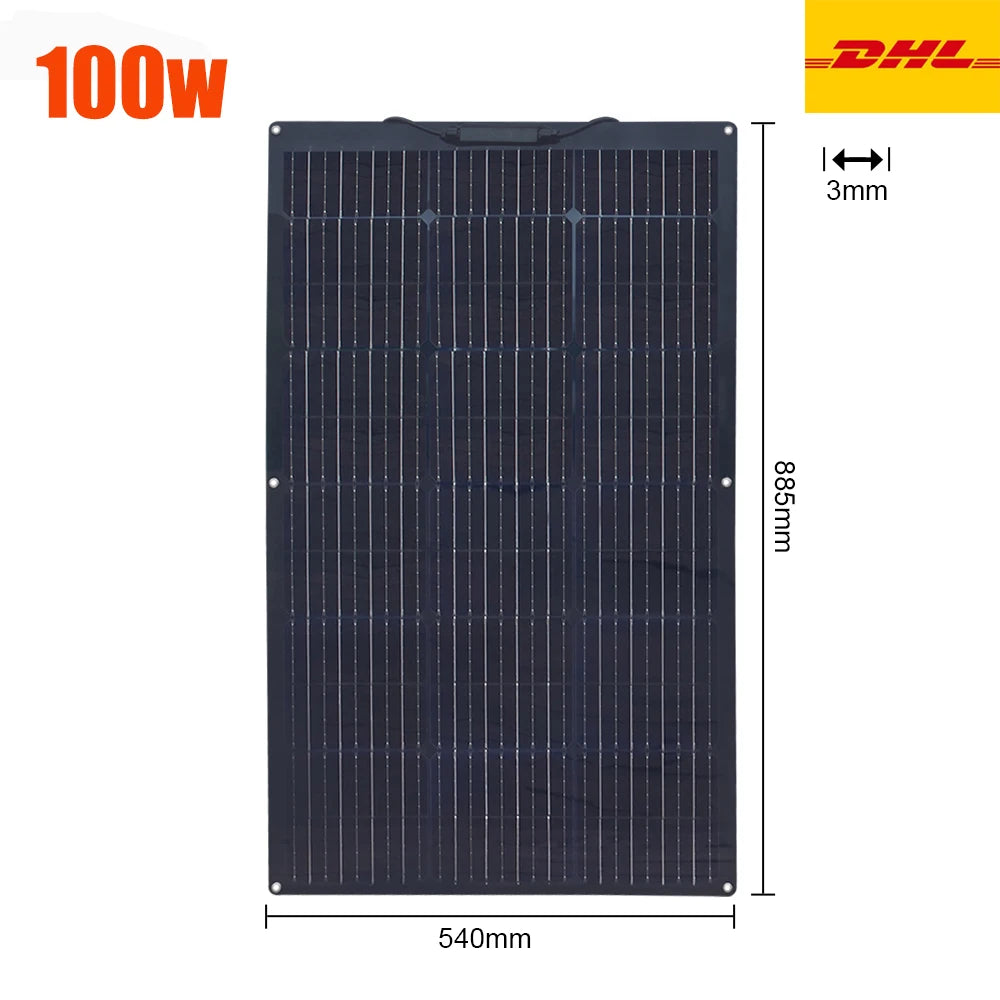

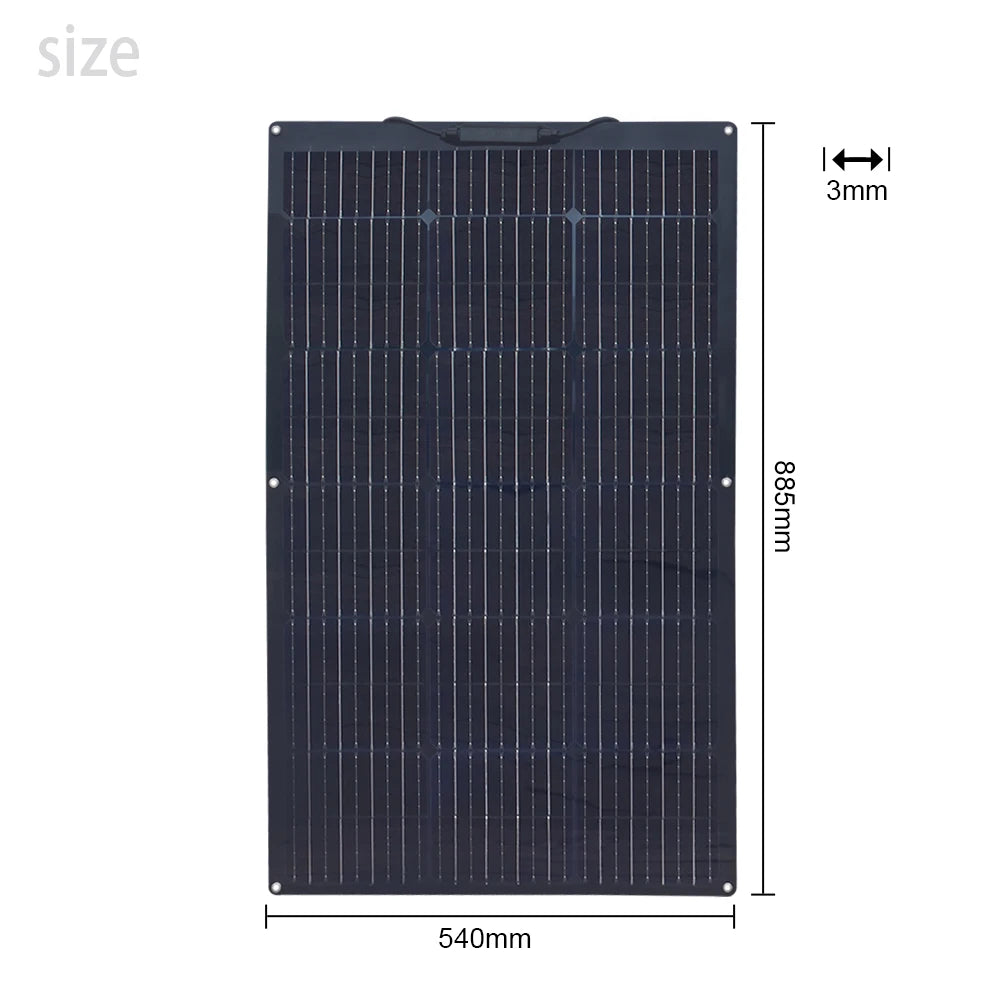

Size ： 885*540*3mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

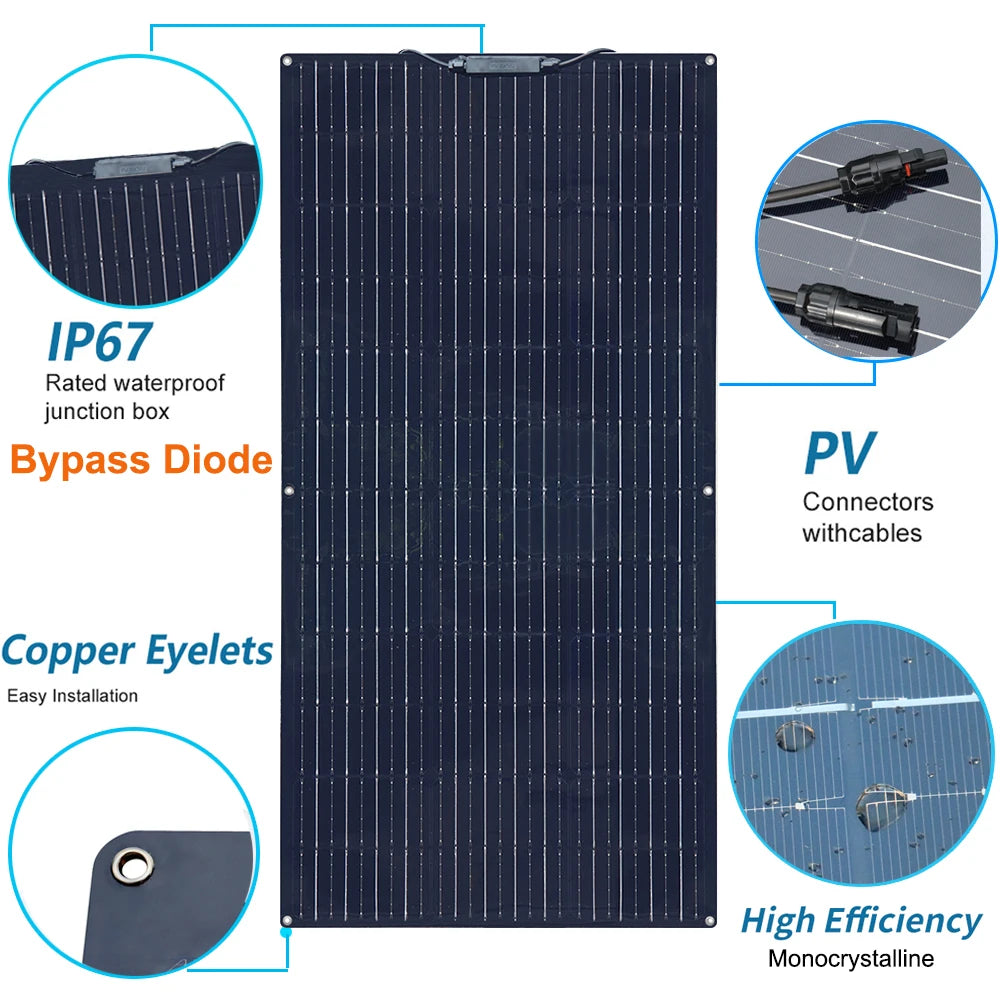

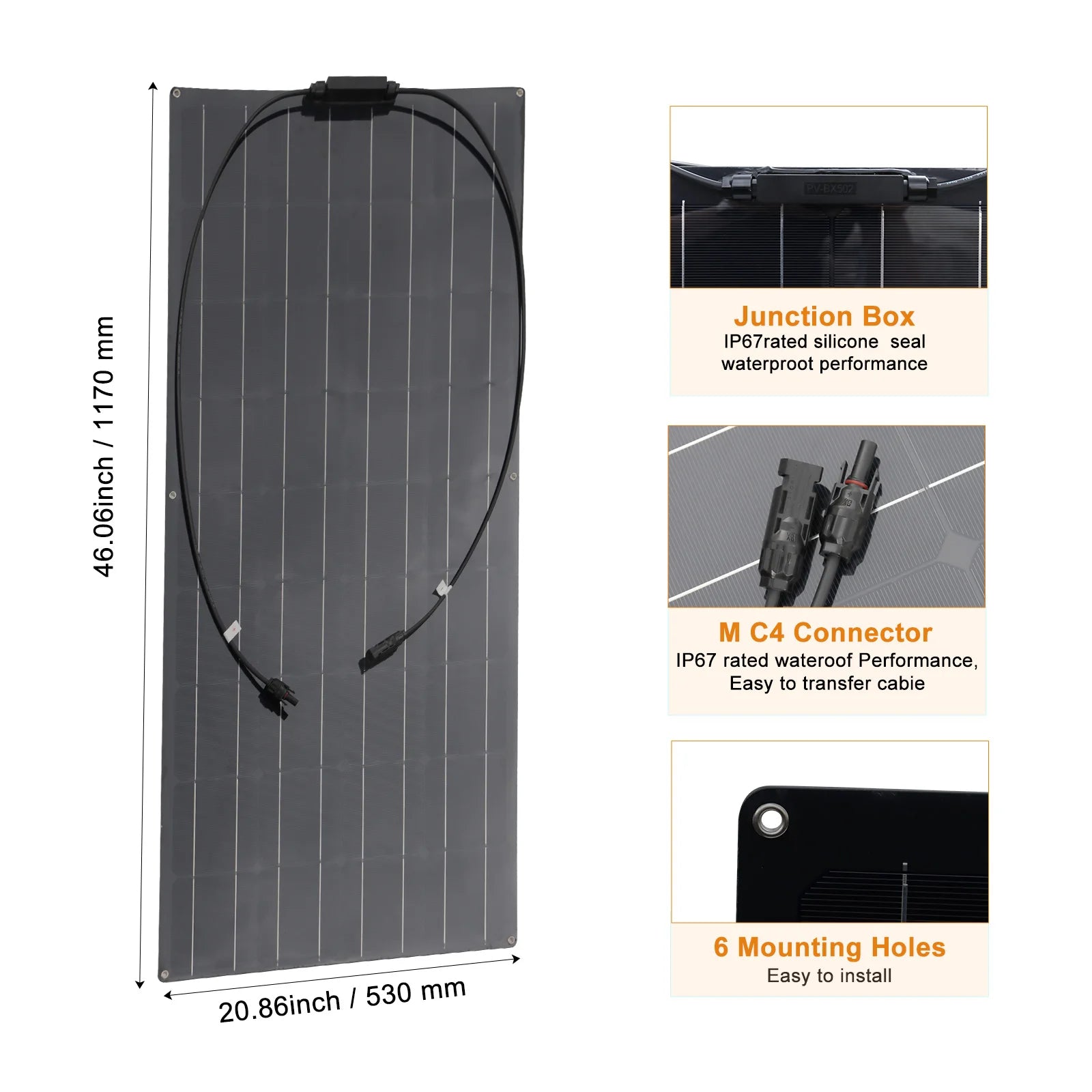

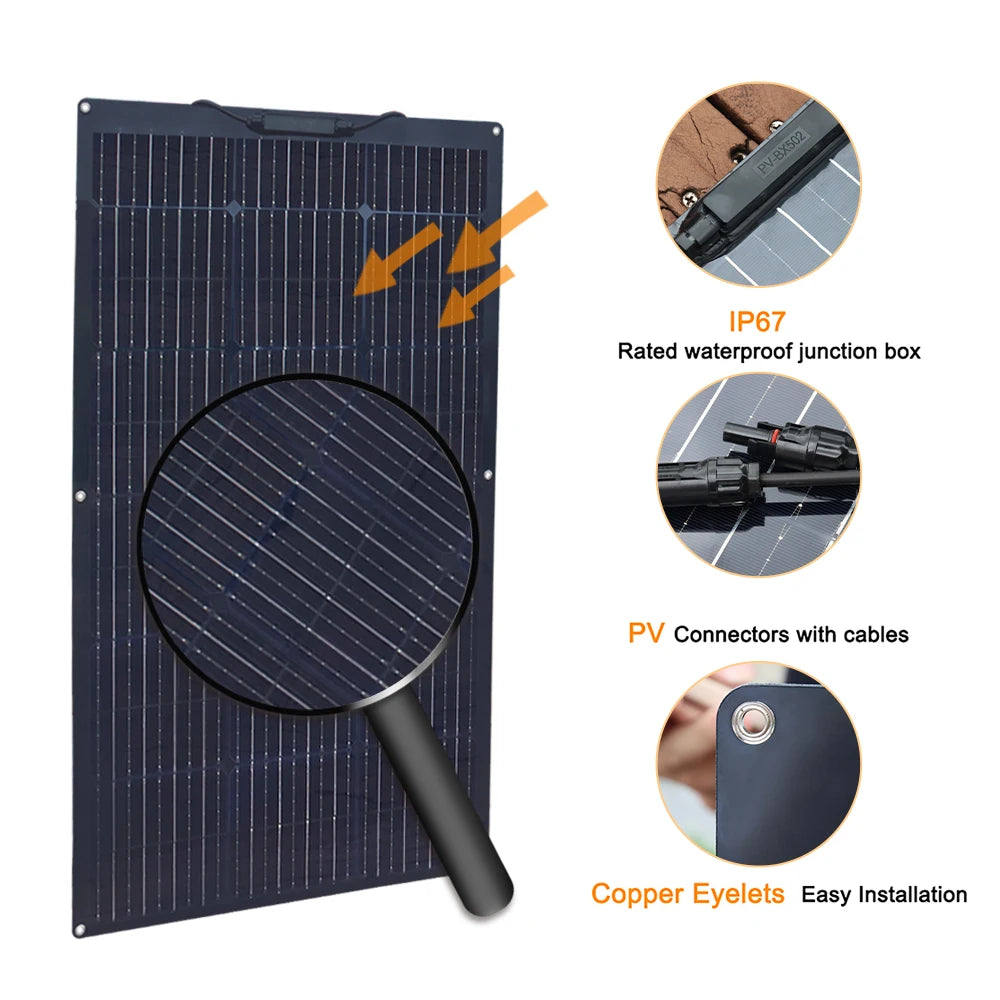

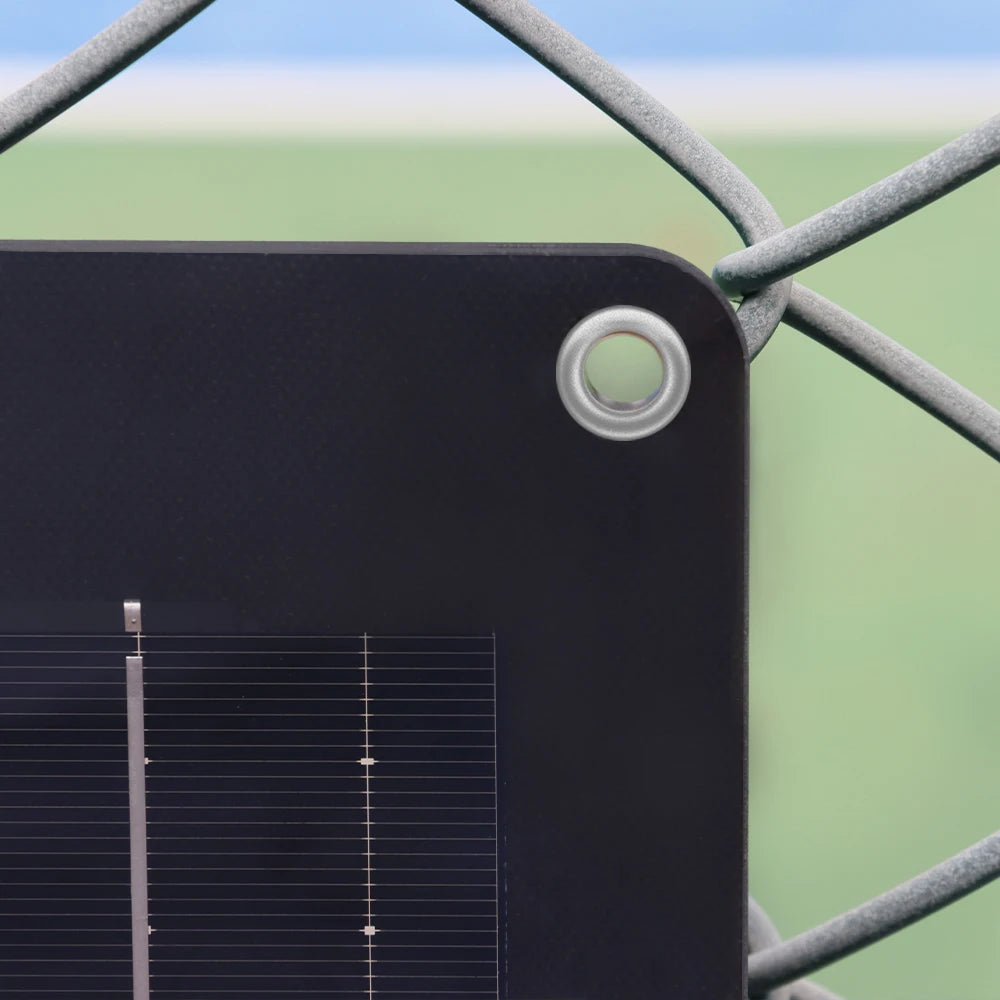

Stainless hole for easy installation

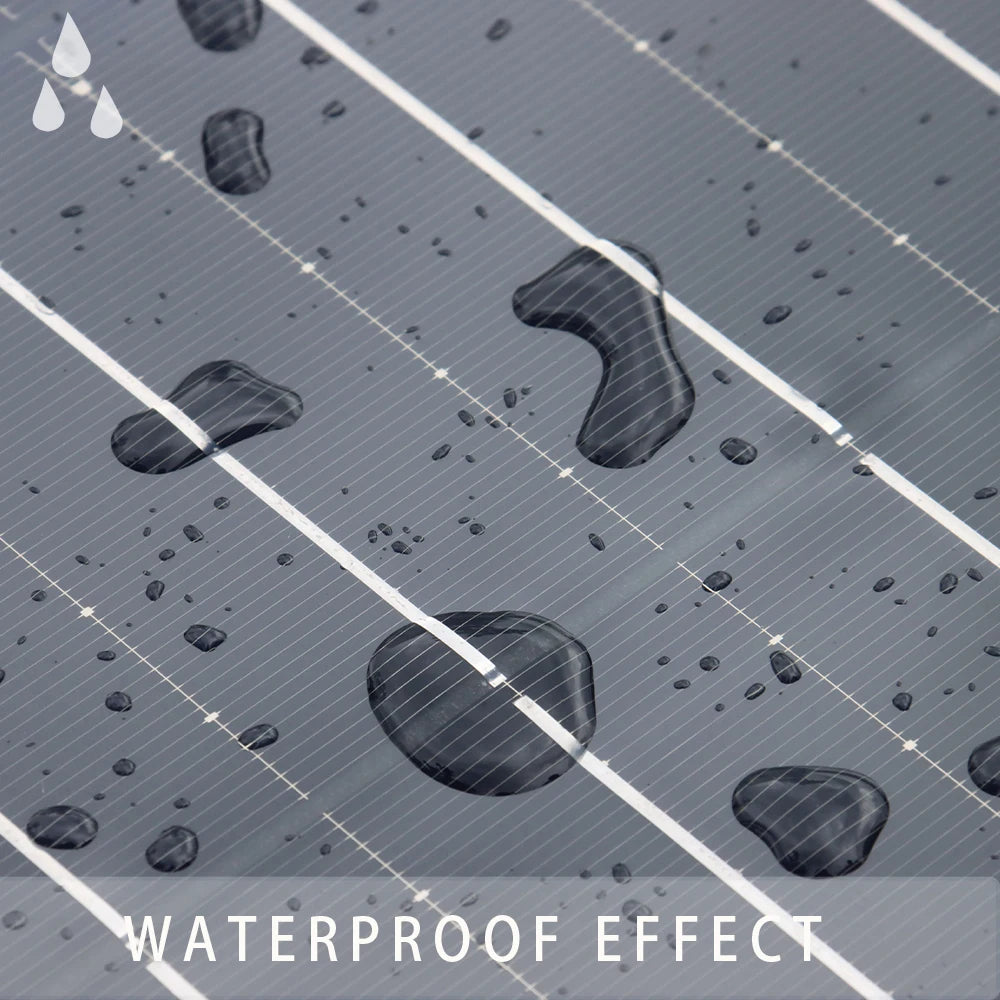

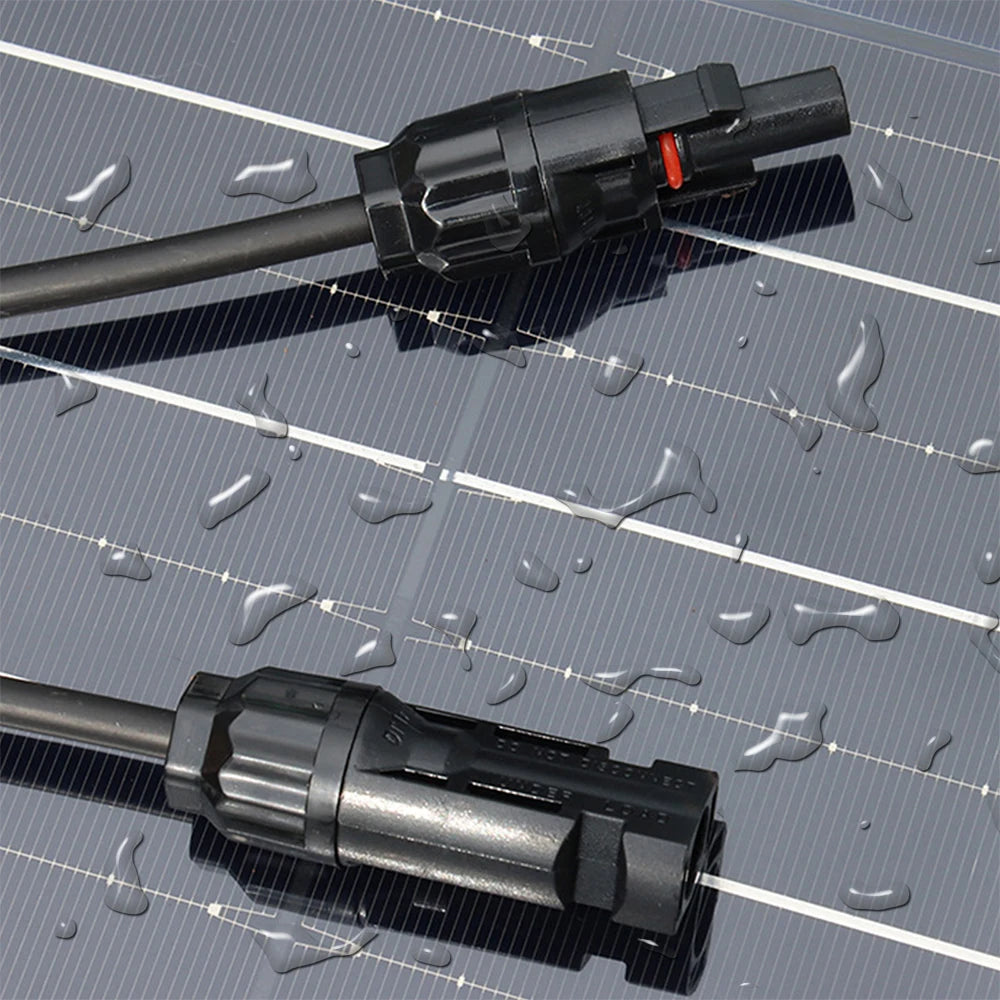

Waterproof

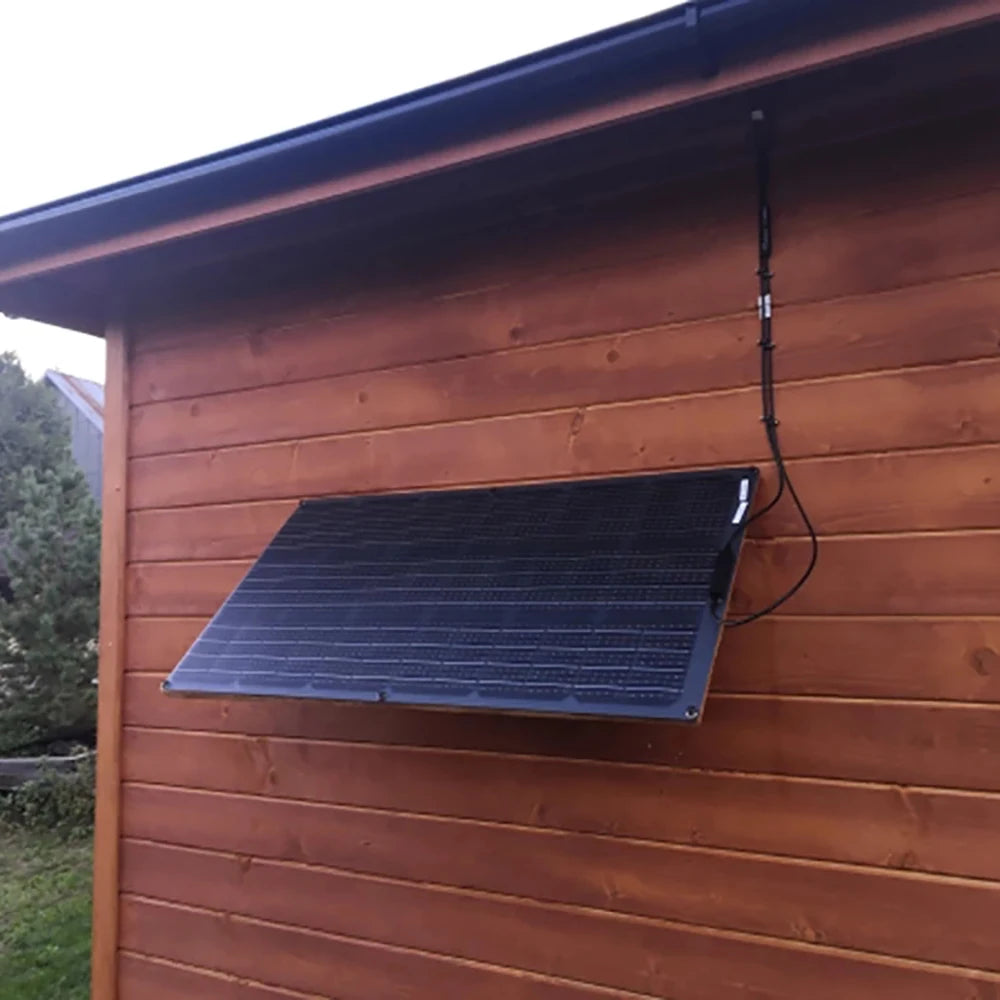

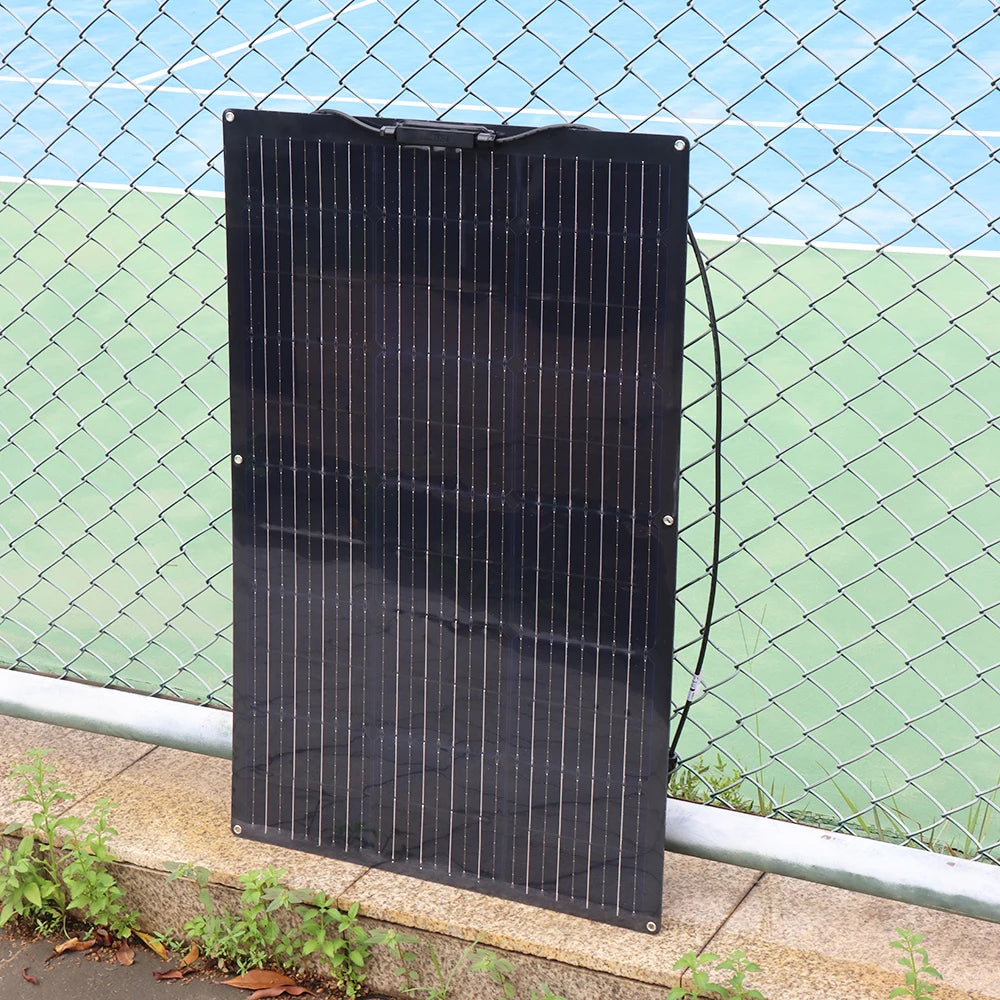

Real Show

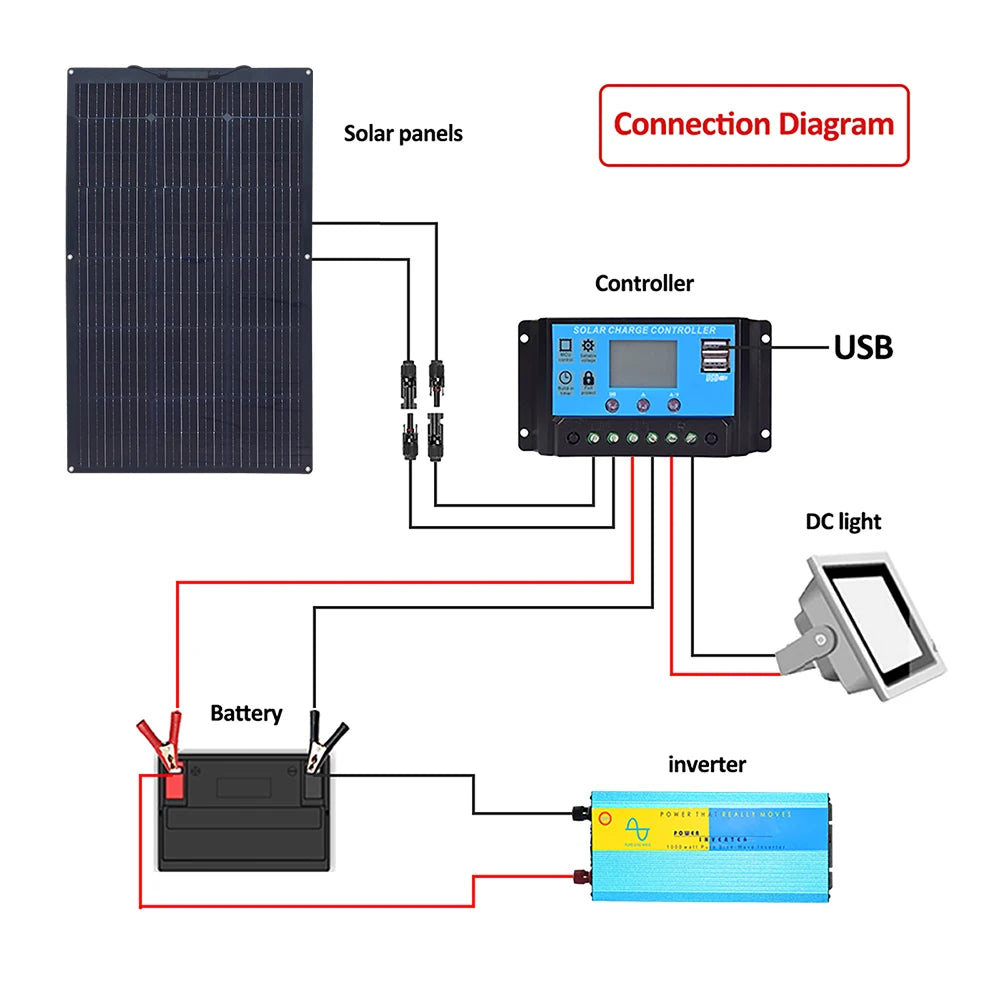

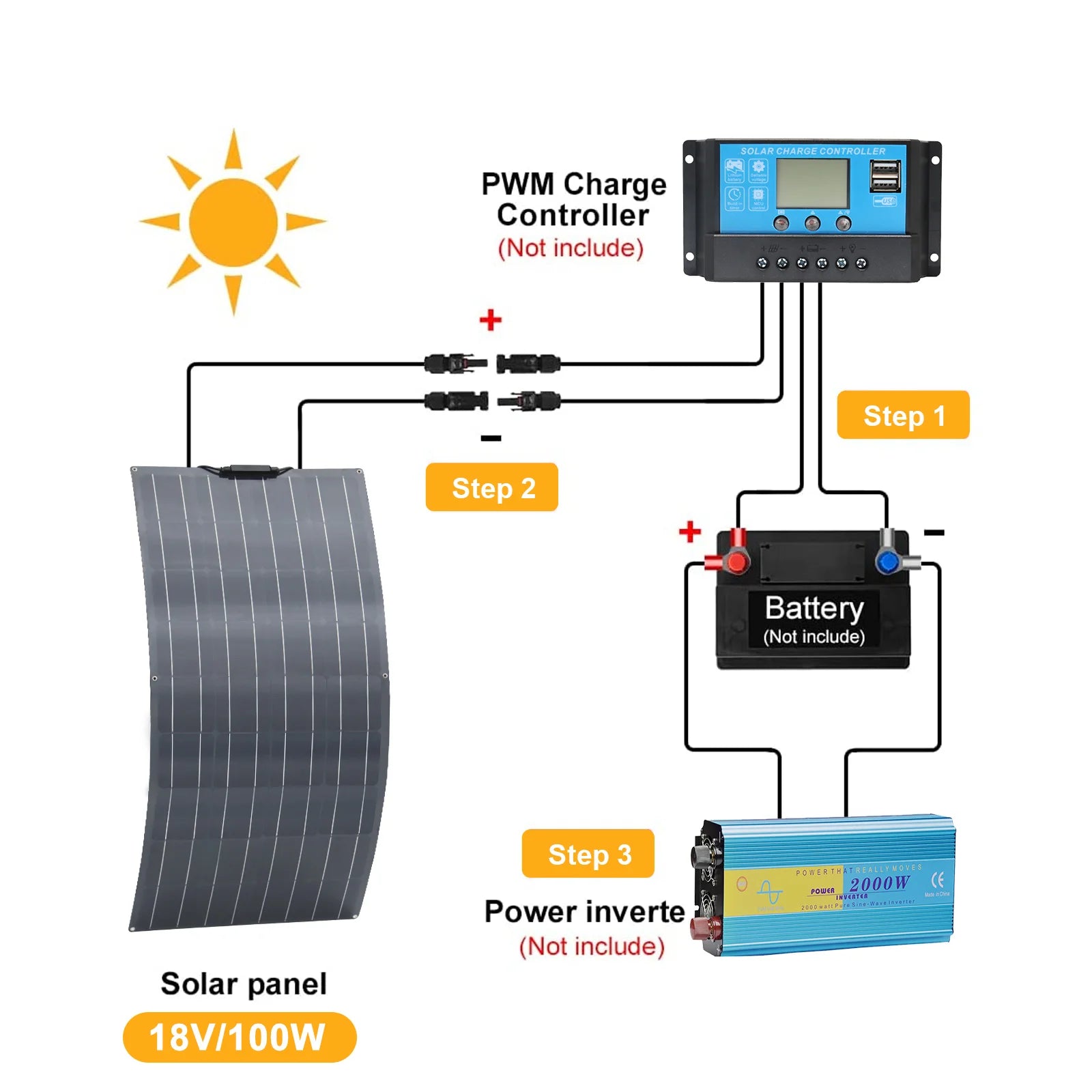

Connection
this is for off grid system
connect controller with battery fristly,then connect controller with solar panel

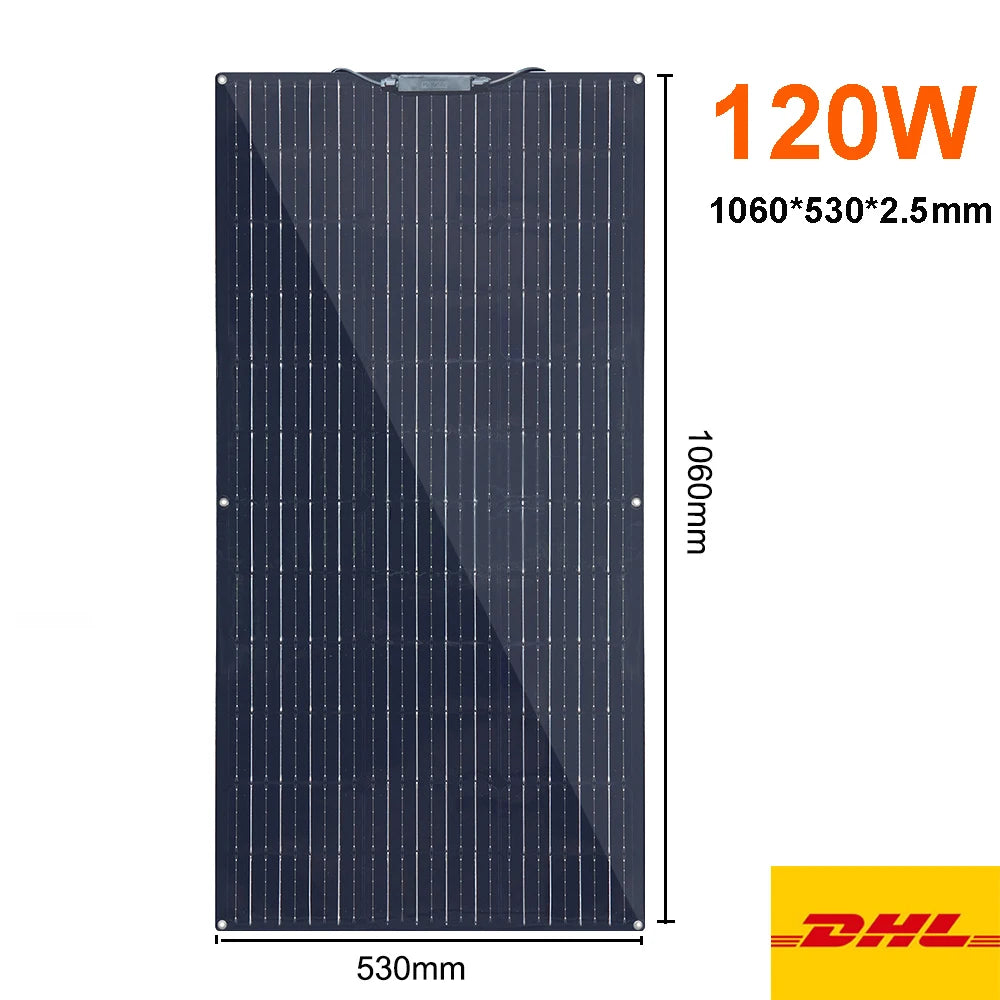

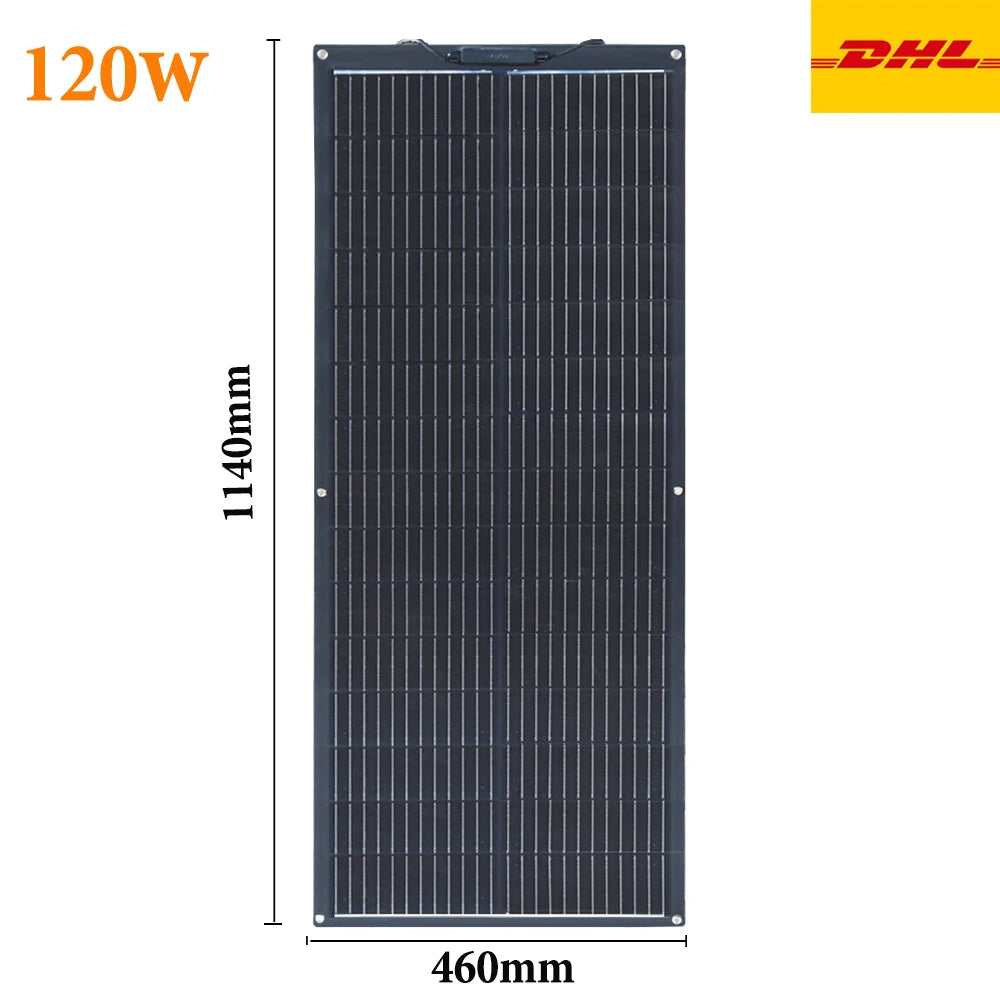

120w flexible solar panel
Maximum power(Pmax) 120W
Output tolerance ± 3%
Open circuit voltage(Voc) 23.76V
Maximum power voltage(Vmp) 19.8V
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -20℃～+80℃
Solar Panel Weight 2.5kg

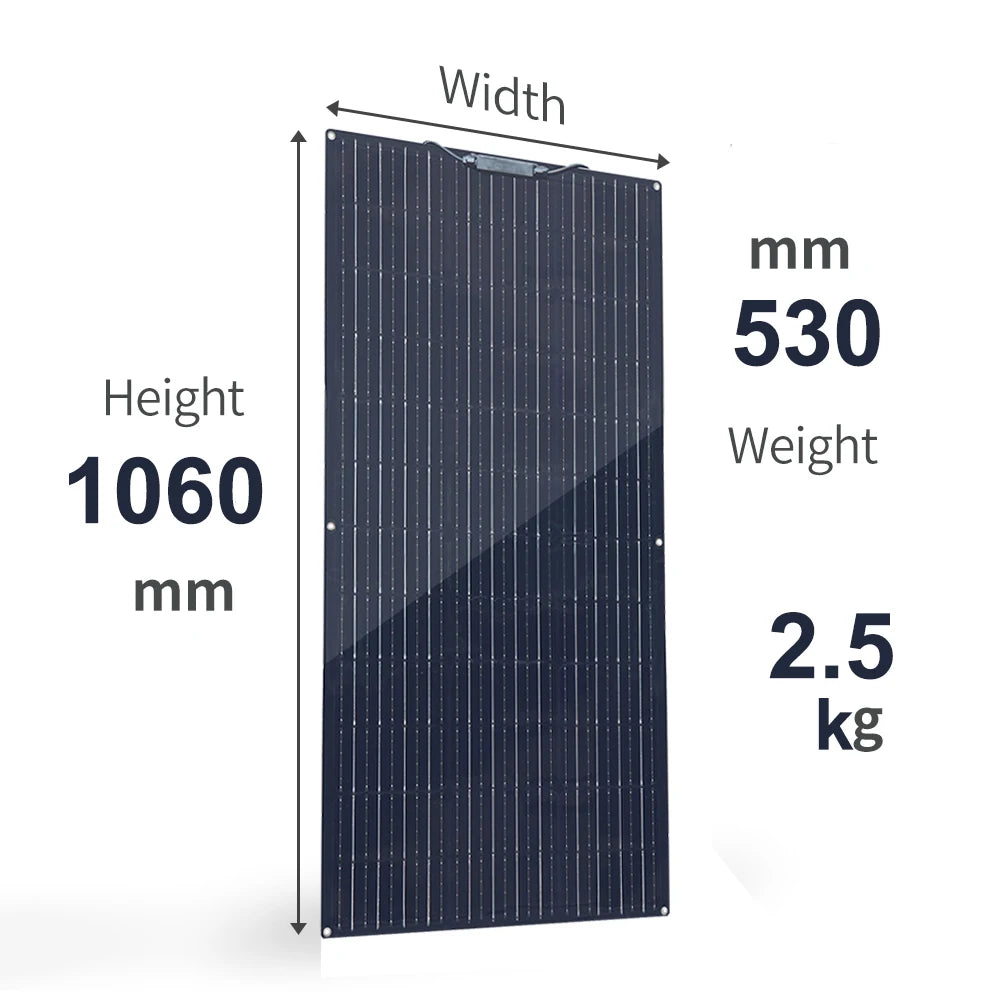

Size 1060*530*3mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

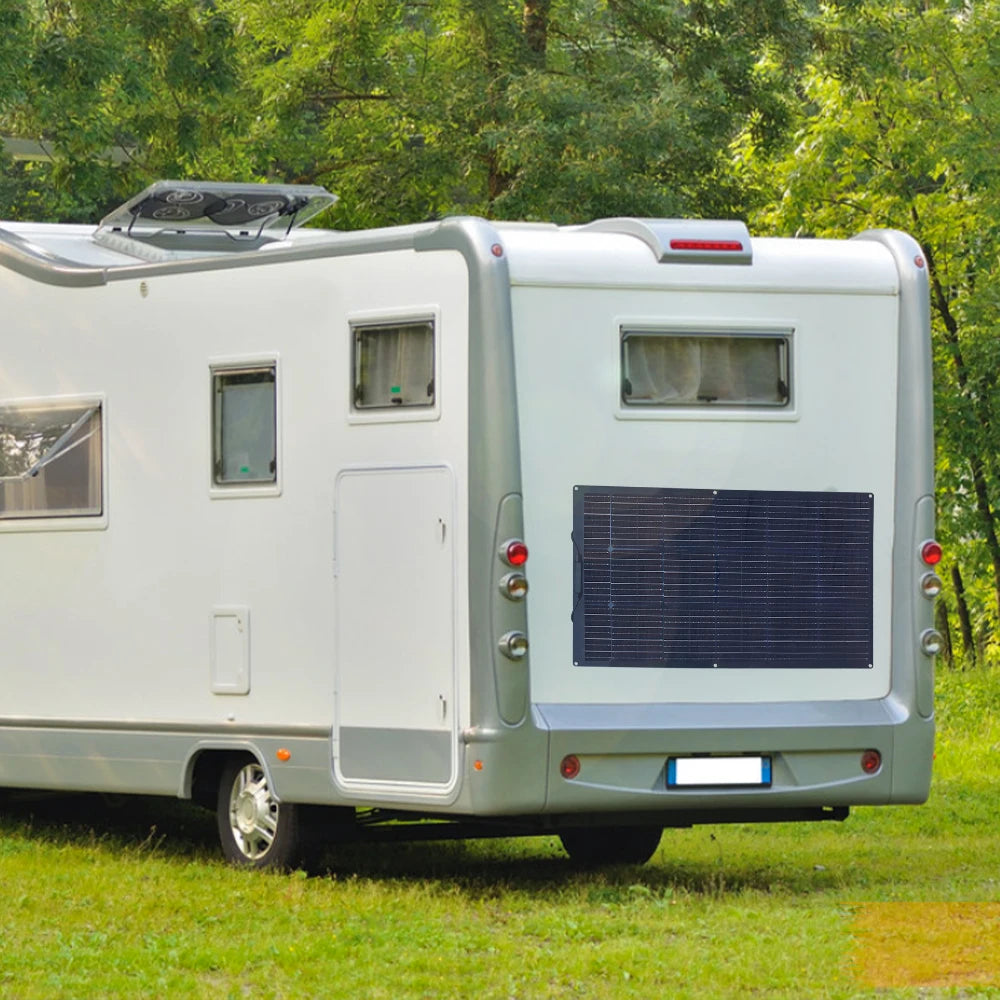

Suitable for car ,roof,camper,outdoor

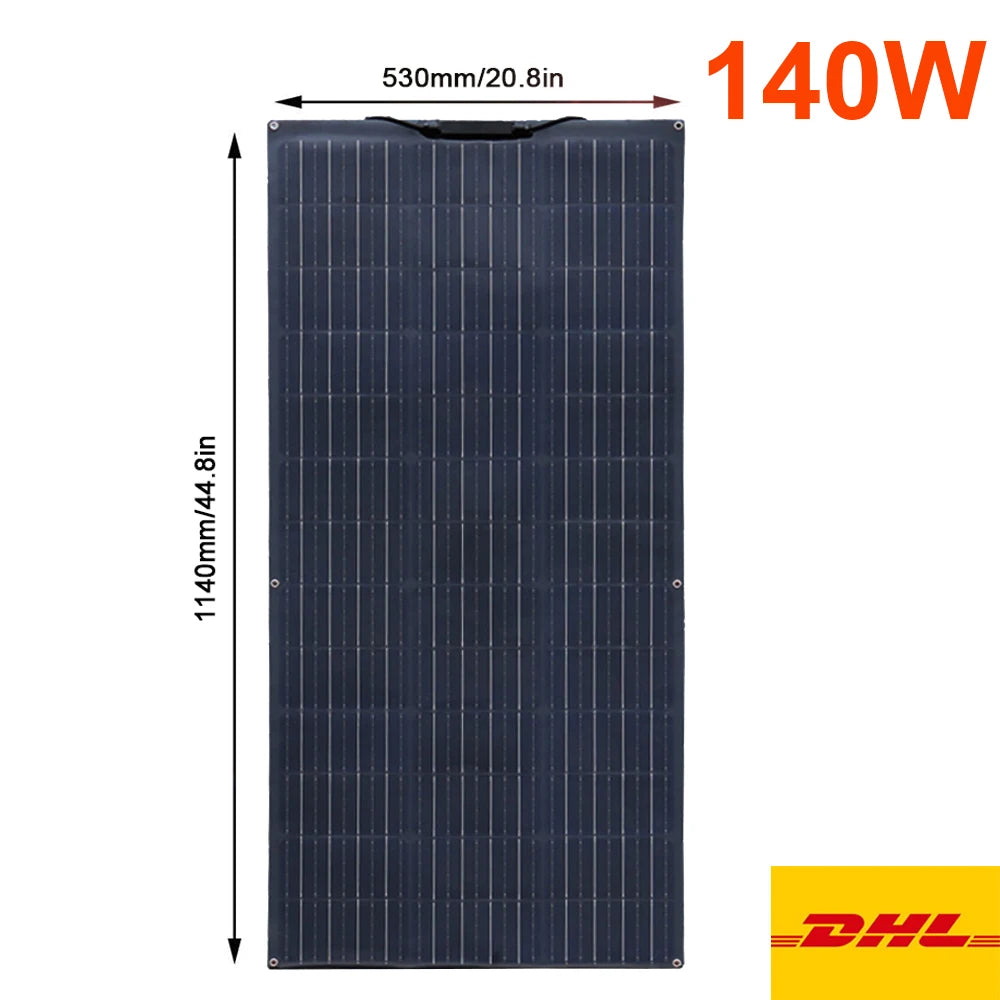

140w flexible solar panel
Maximum power(Pmax) 140W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 25.8V
Maximum power voltage(Vmp) 21.5V
Cell efficiency 19.5%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 2.5Kg
Size 1140*530*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
