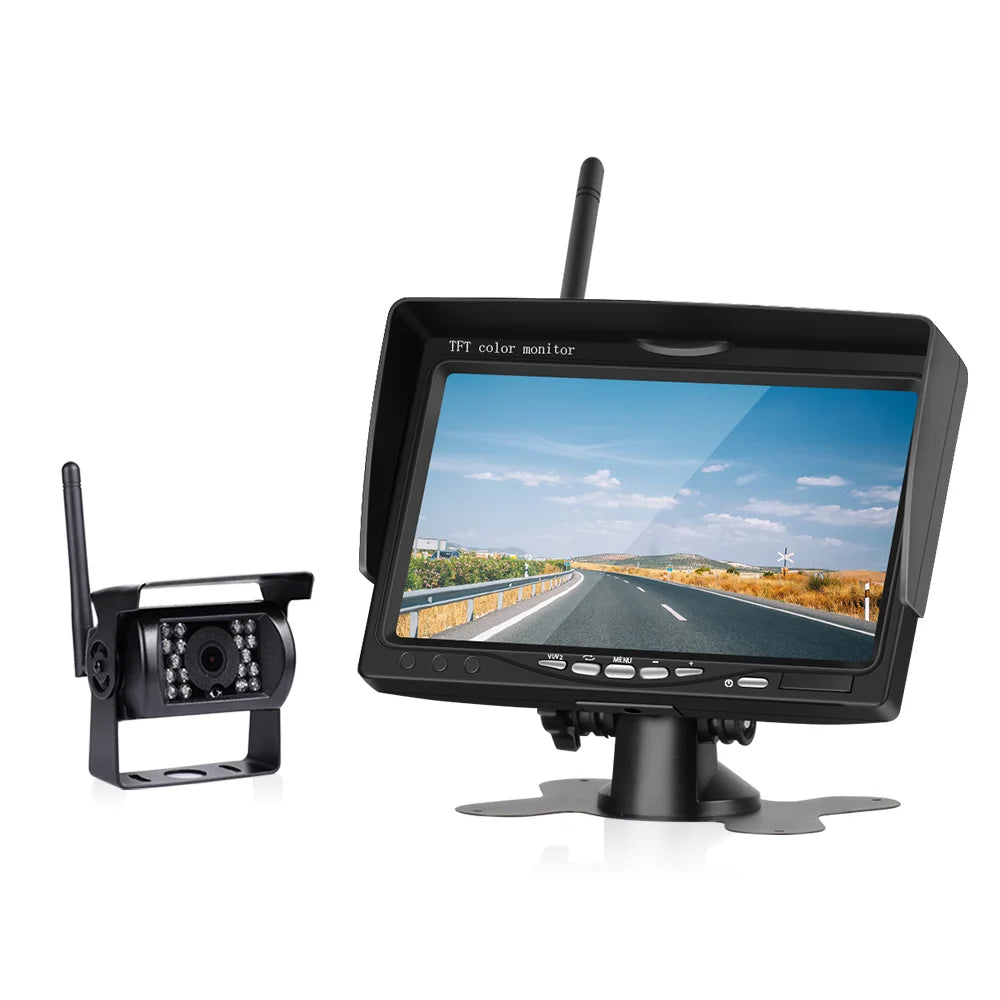

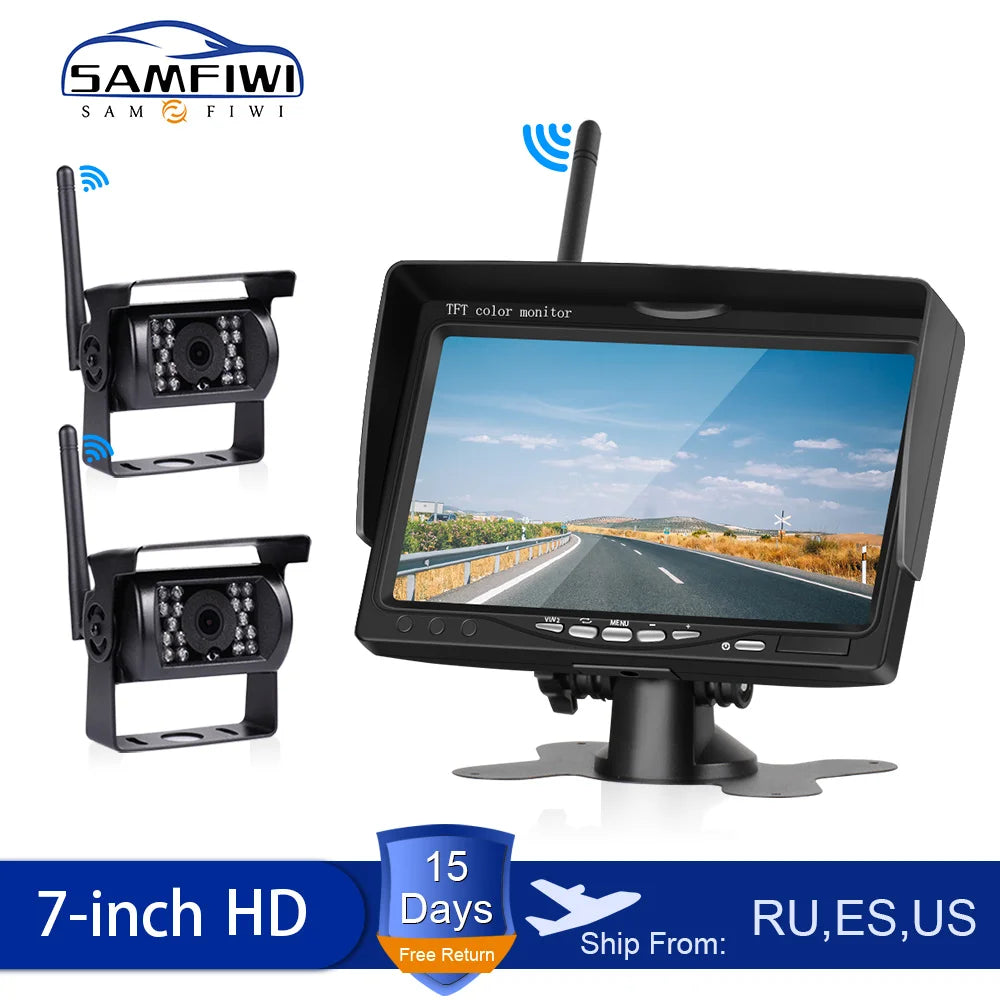

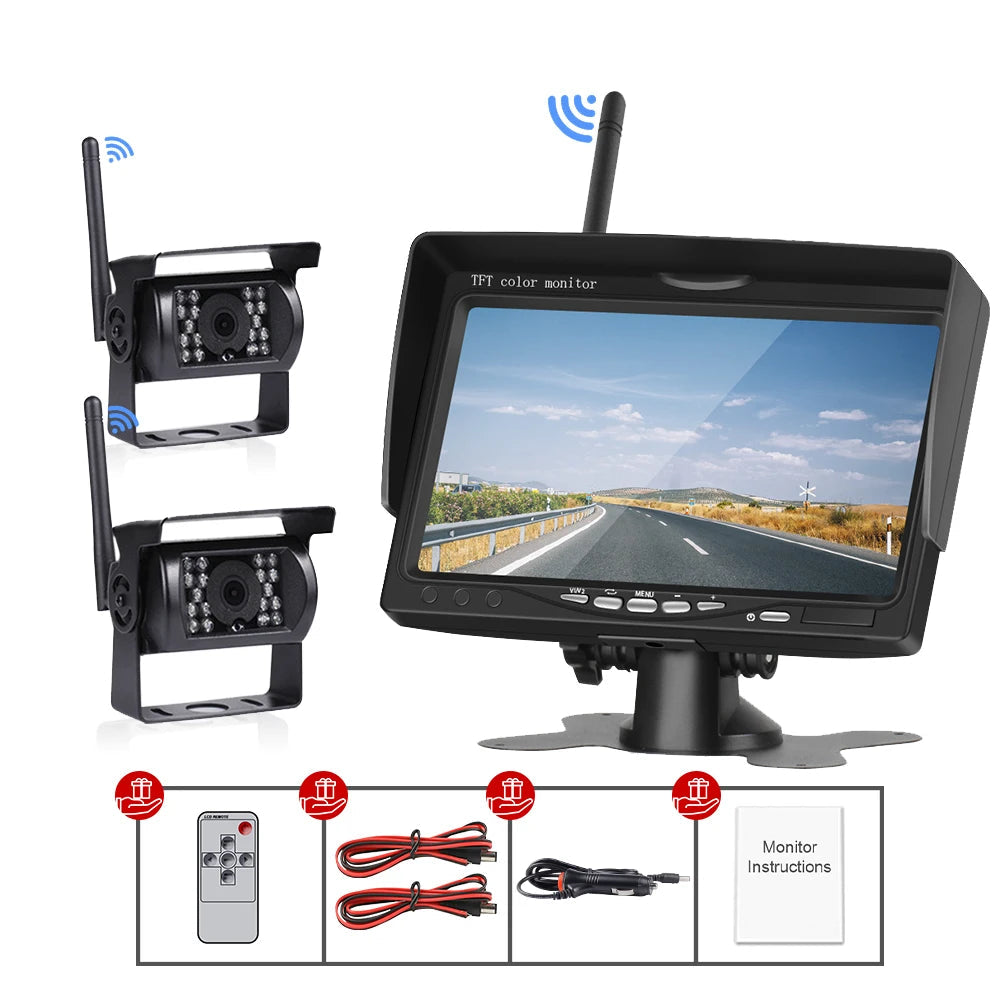

Reversing Camera System
Reversing Camera System
The Reversing Camera System is a must-have for any boat owner. With its advanced technology, mooring your boat becomes hassle-free and stress-free. Say goodbye to the guesswork and hello to smooth navigation. Enjoy the benefits of easy and stress-free docking with this essential system.
SPECIFICATIONS
Guiding Line: Yes
Alarm Type: Vehicle Backup Cameras
Alarm Type: Front
Alarm Type: Front Side
Alarm Type: Rear Side
Lens Material: Glass
Shell Material: Plastic
Certification: CE
Wire or Wireless: WireLess
Material Type: Abs
TV System: PAL/NTSC

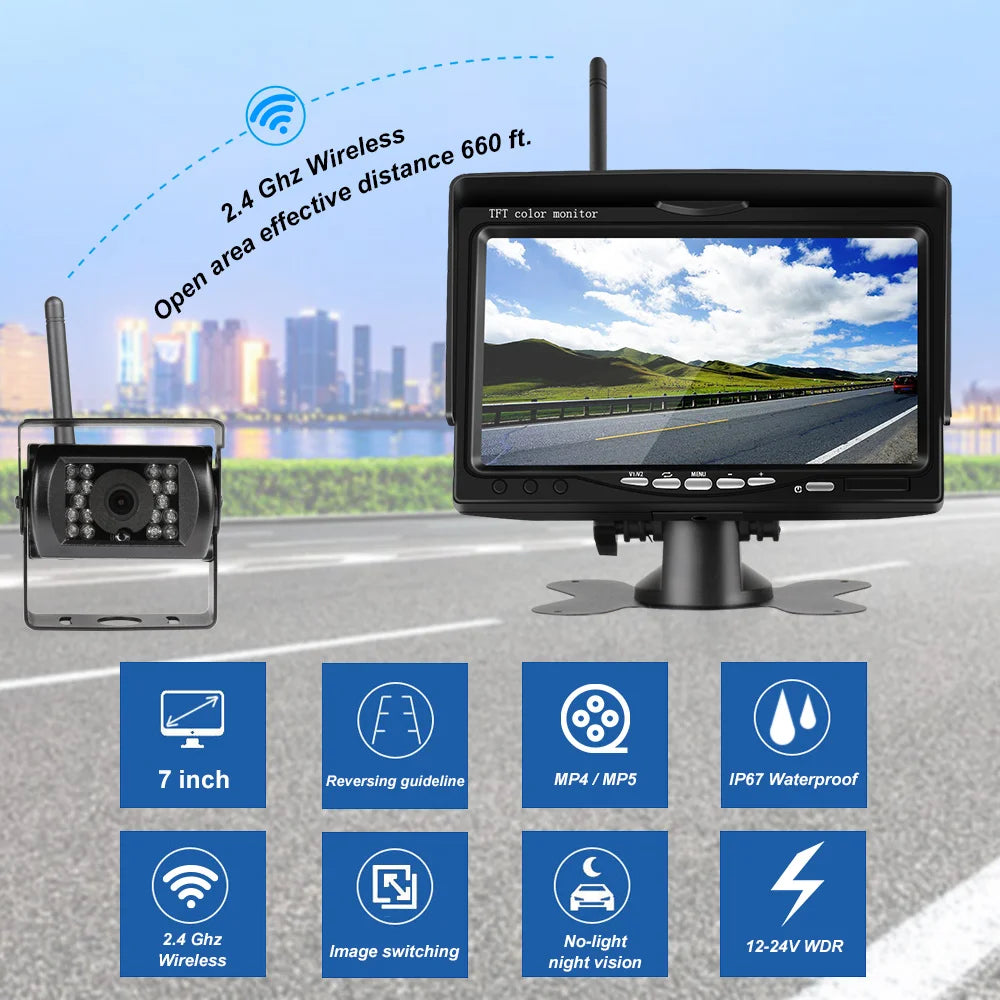

Reception: 20m open air

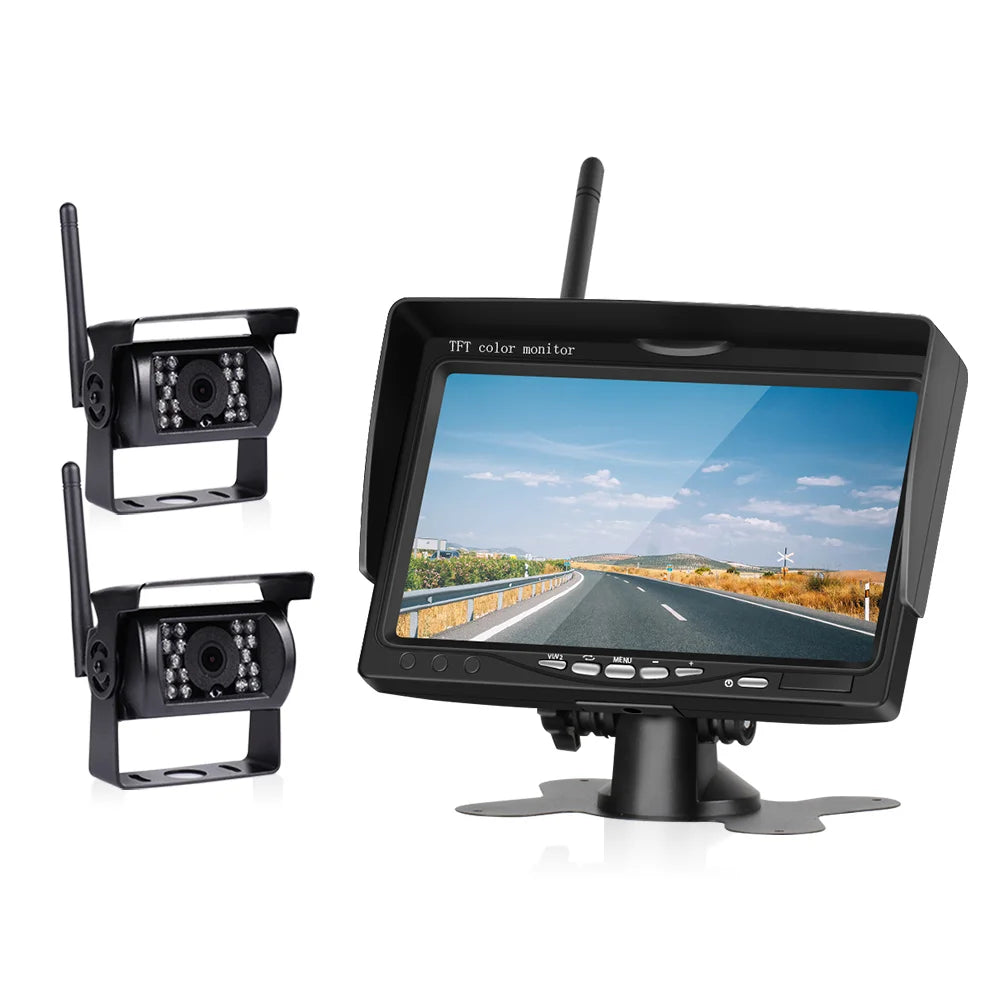

Video: Two way video input

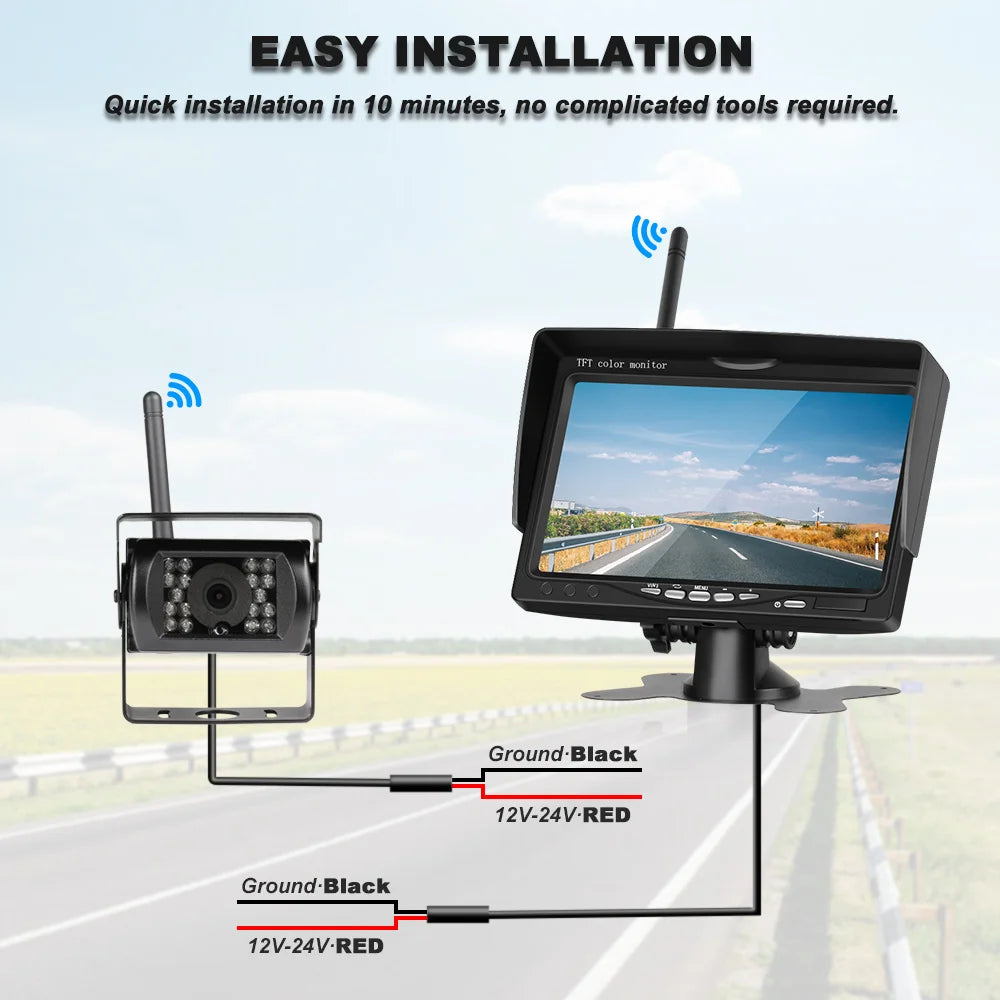

Power: 12V-24V
Consumption: 5W

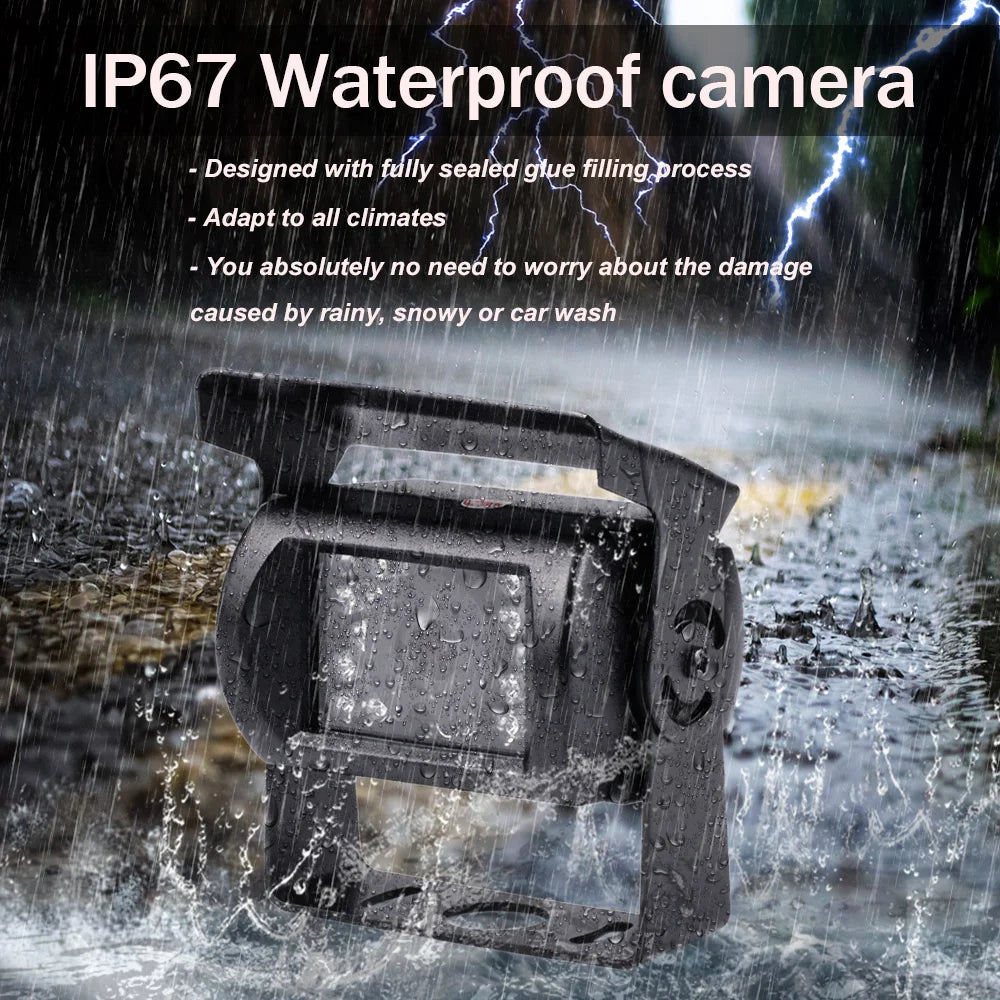

Camera waterproof: IP67
Lens Angle: 140 degree
Resolution: 1024*600
Installation Guide：
1. please turn off FM radio,wifi or other electronic product to avoid the signal interference.

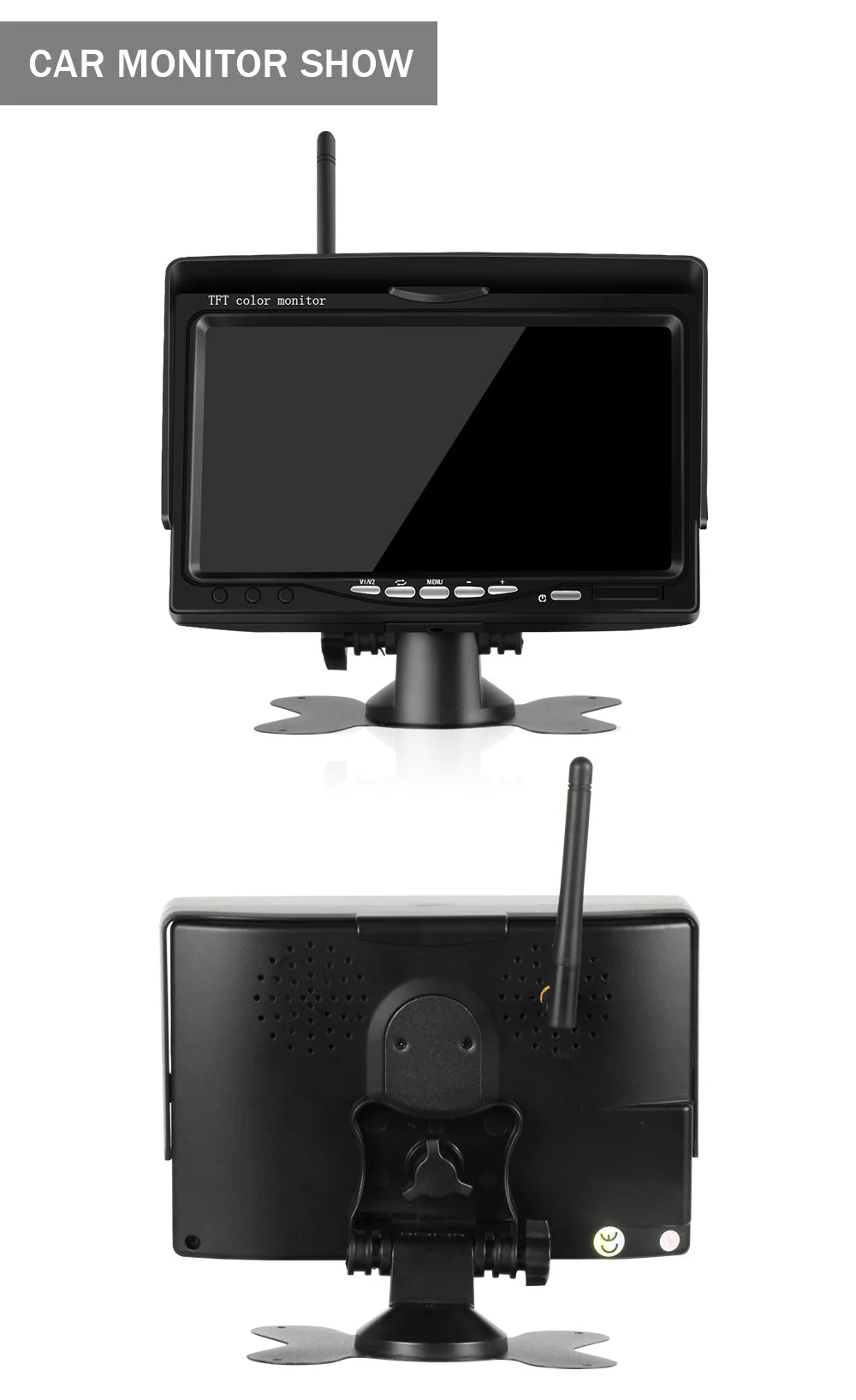

2. Please press the 1st button on monitor or press video select on remote to AV2 which works for wireless camera.

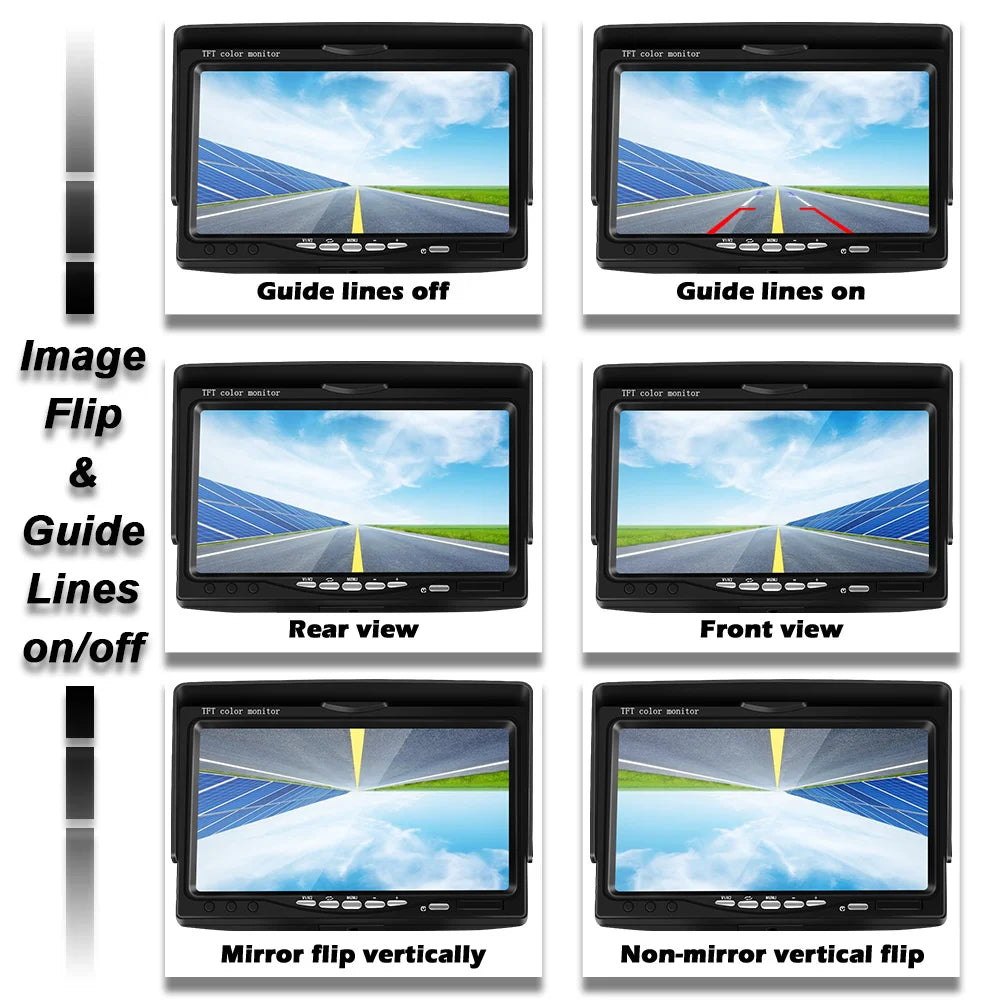

3. There are 2 channels for the cameras:2410(with guide lines for reversing) and 2470(without guide lines for monitoring). Please switch each by pressing the 2nd button on monitor or pressing model Select on remote
4. For maximum signal point the antennas towards each other
5. Keep monitor and camera at least the distance of 2 meters(about 78.7”). or camera and monitor will interfere with each other

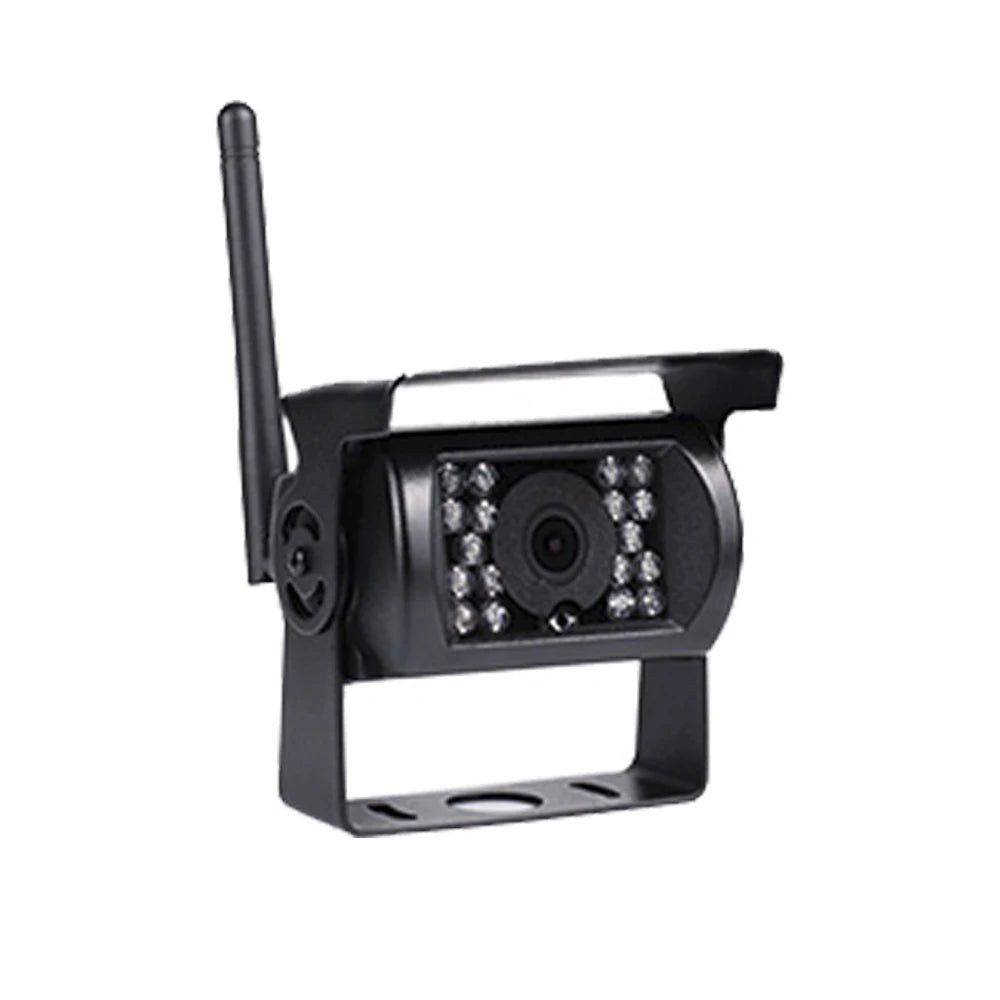

6. The IR camera has night vision, it will turn red when light is low
NOTE:
★★★ If you buy one camera, we will ship the camera with the reversing monitoring line by default (camera 2410)
