5 watts CLASS B+ AIS Transponder Dual Channel Support NMEA0183 5Pin
Power supply：
Power supply: Rated Voltage: +12VDC
Extreme Voltage: +9.6VDC，+24VDC
Electrical functions are in accordance with IEC 62297-1

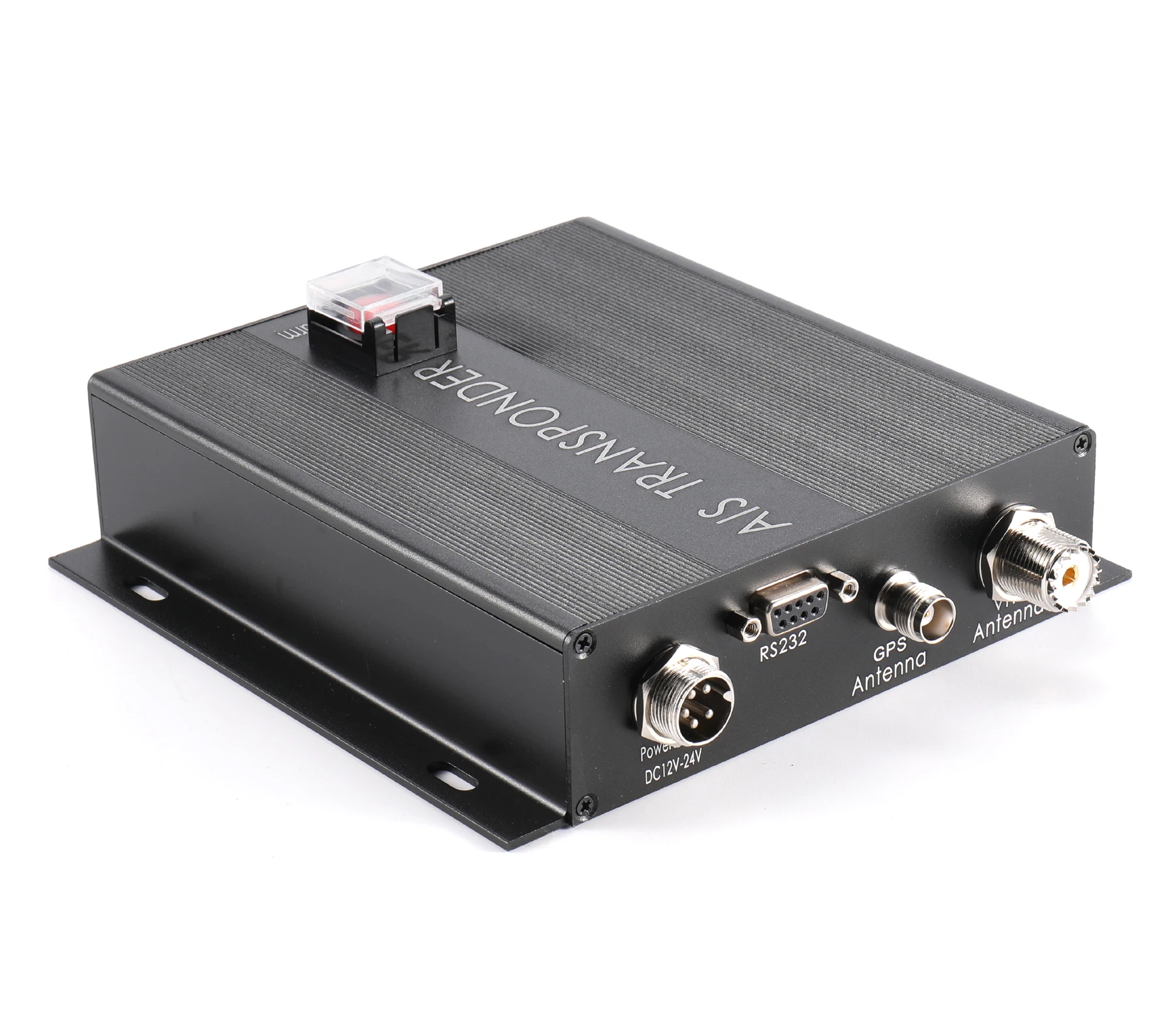

Matsutec Class B AIS Transponder
Model: HA-102
FEATURES
-
Electrical function is accordance with IEC 62297-1
-
Dual Channel function: Two TDMA receivers ar receiving datum in two independent channels at the same time, and one TDMA transmitter is transmitting in two independent channels alternately.
-
SOTDMA function can avoid and solve communication conflict.
-

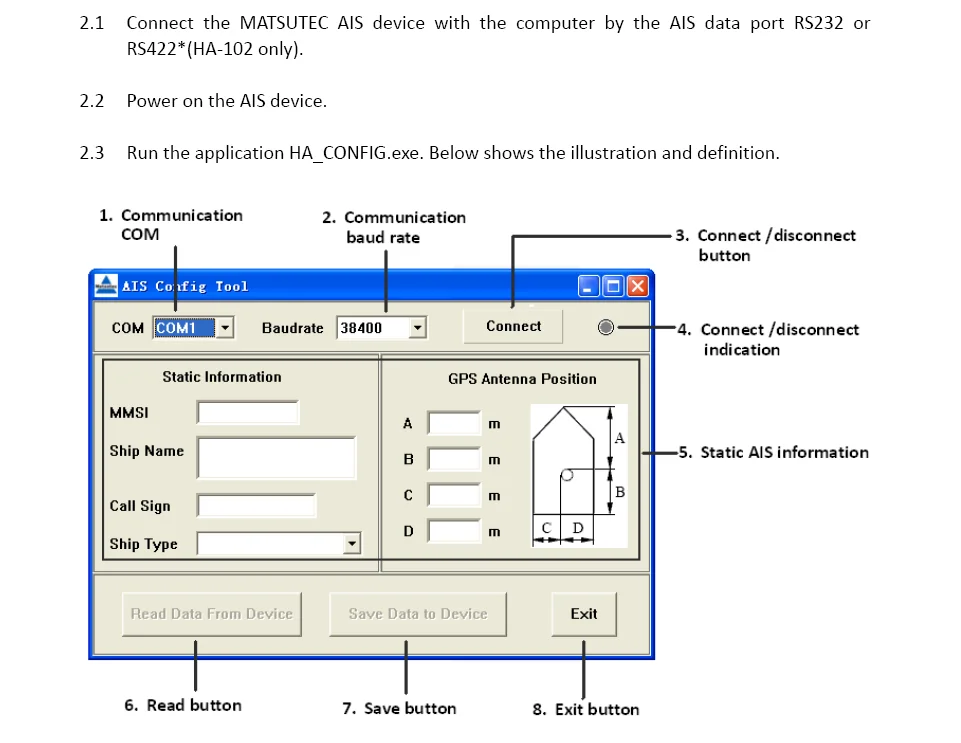

Transponder has external serial data interface(RS-422, RS-232).
-
Transmit and reciever safety message, and equipped with "SOS" safety button.
-
Support three operation mode: Carrier-sense mode, assigned mode and polled mode.
-
Internal GPS reciever, as data source for position, COG and SOG can be connected to all devices compatible to GPS and PC, PDA, ECDIS, RADAR, etc.
-

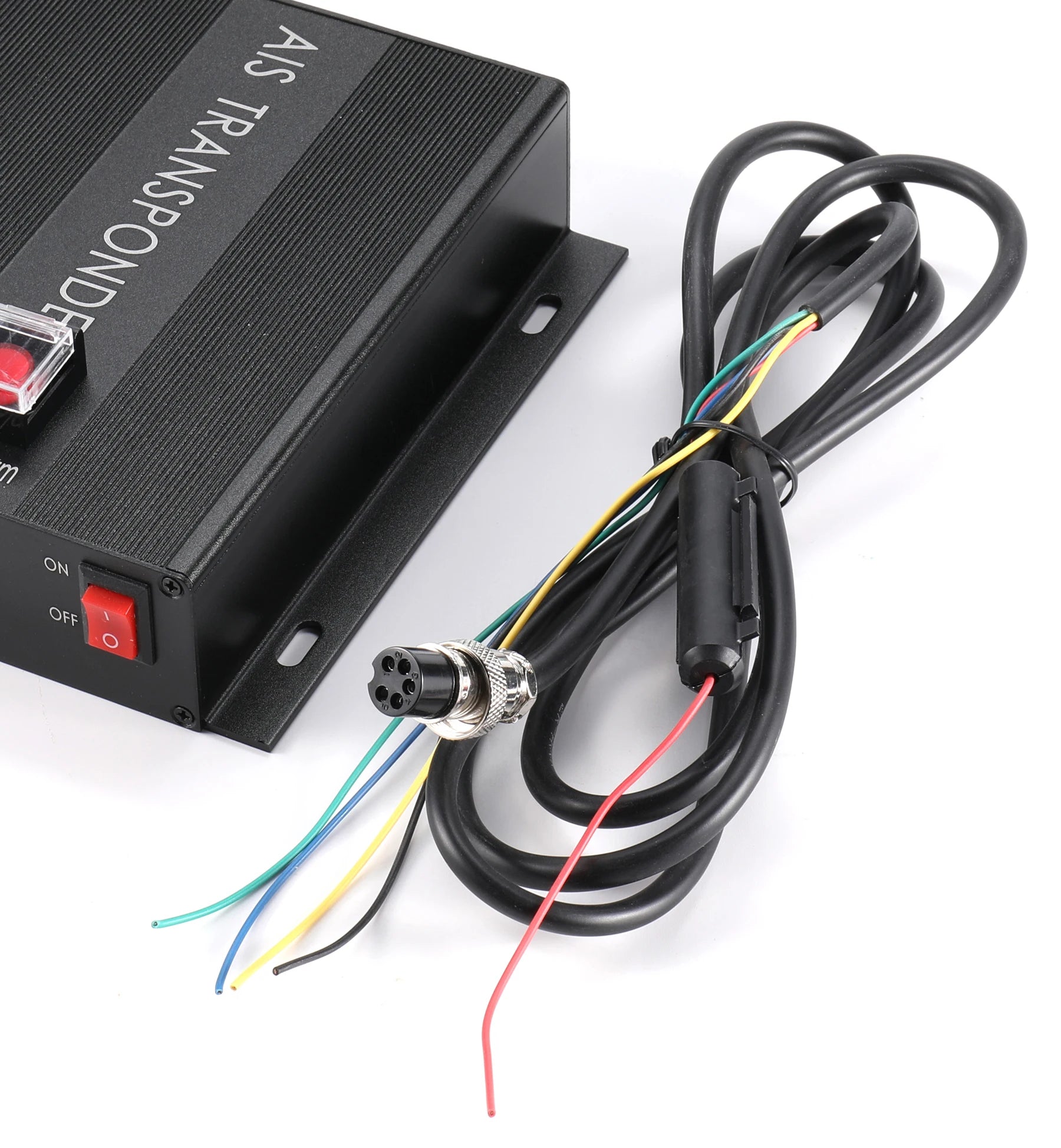

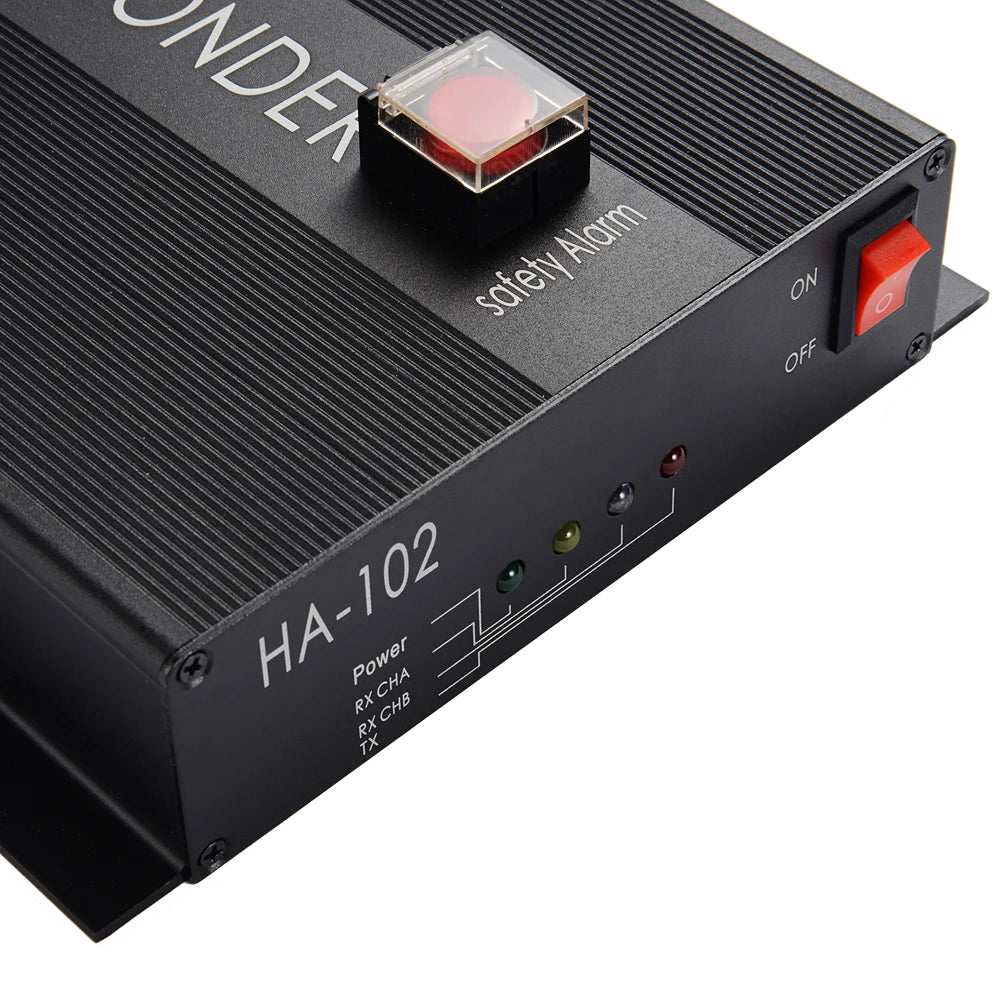

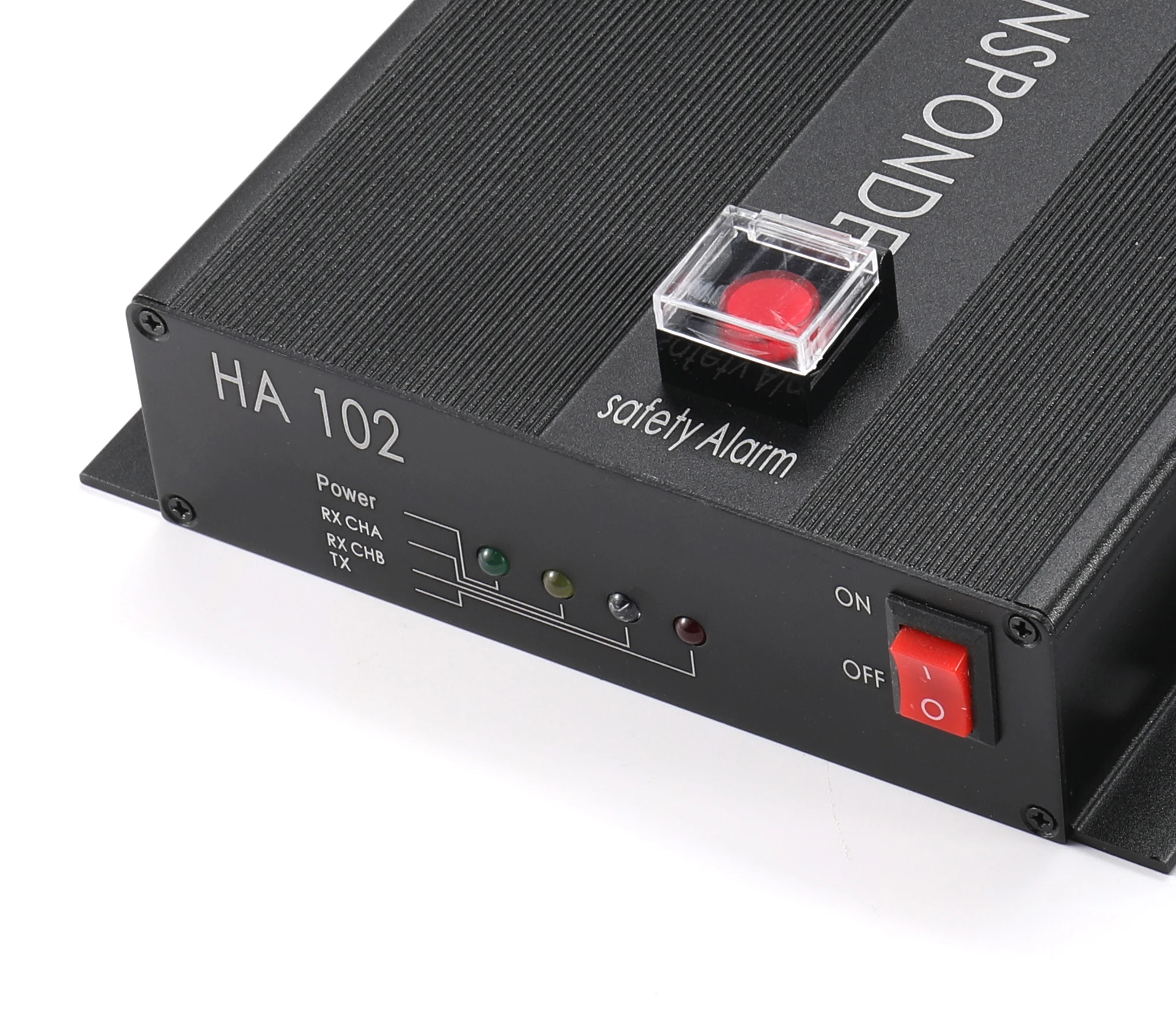

Alarm and indication (via LED) for power , error, time-out, status.
Specifications
|
STANDARDS |
IEC 62297-1 |
|
|
IEC 61162-1 |
|
|
IEC 60945-2002 |
VHF RECEIVER
|
Frequency Range |
156.025MHZ ~ 162.025 MHZ |
|
Channel Bandwidth |
25 KHZ |
|
Number of AIS Receivers |
2 Receiver ( one time shared between |
|
|
AIS/DSC ) / 1 Transmitter |
|
CH-1 |
Default CH 87B ( 161.975 MHZ ) |
|
CH-2 |
Default CH 88B ( 162.025 MHZ ) |
|
Number of DSC Receiver |
1 ( CH 70) |
|
RX DSC |
156.525 MHZ |
|
Max. Usable Sensitivity |
PER less 20% at -107dBm |
VHF TRANSMITTER
|
Power Output |
5 Watt ( 33 dBm ±1.5dB ) |
|
Modulation |
GMSK / FM |
|
Data Rate |
9.6K dps / per channel |
|
Modulation Spectrum |
IEC 62287 |
DSC RECEIVER
|
Modulation |
1300 HZ / 2100 Hz FSK |
|
Data Rate |
1200 bps ± 30 ppm |
|
Spurious Response Rejection |
Over 70dB for Signal @ -104dBm; BER less 1% |
|
Blocking |
More 84dB for Signal @ -104dBm; BER less 1% |
GPS RECEIVER
|
Receiving Channels |
12 Channels |
|
Acquisition Sensitivity |
-140dBm |
|
Tracking Sensitivity |
-150 dBm |
|
Position Accuracy |
< 2.5m CEP ( GPS ) without SA |
|
Output Rate |
1 Hz |
POWER SUPPLY
|
Supply Voltage |
12V DC ( 10V ~ 20V ) |
|
Power Consumption |
Less than 10W |
MAIN UNIT
|
4 LED Indicator Working Status |
|
1 ON/OFF Switcher |

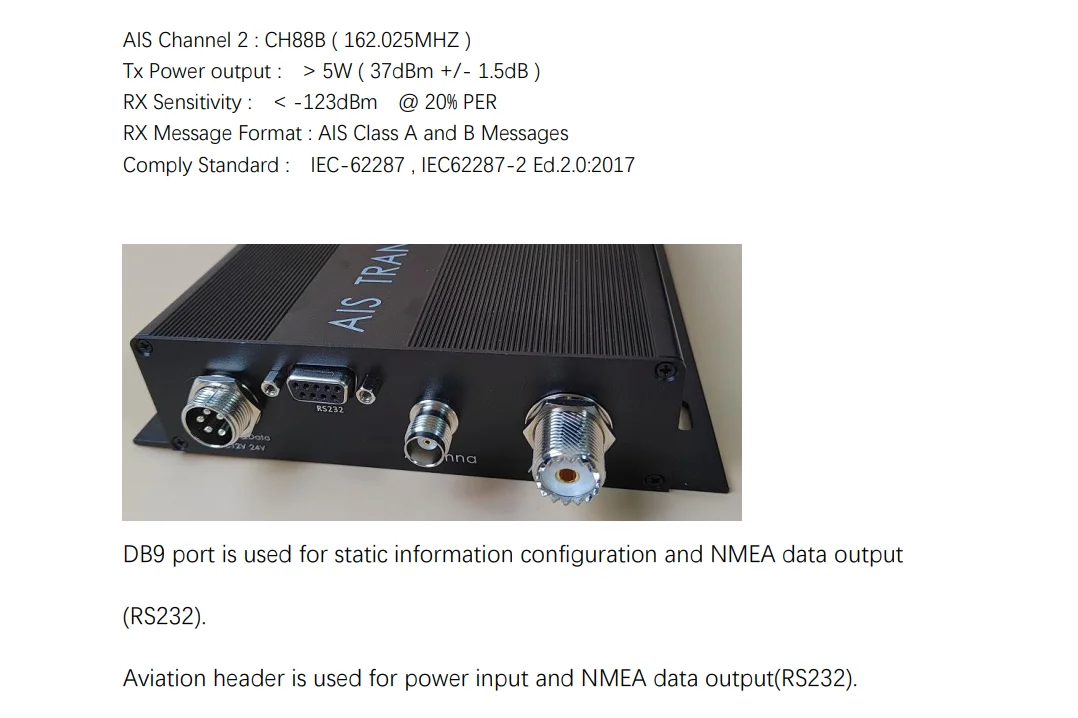

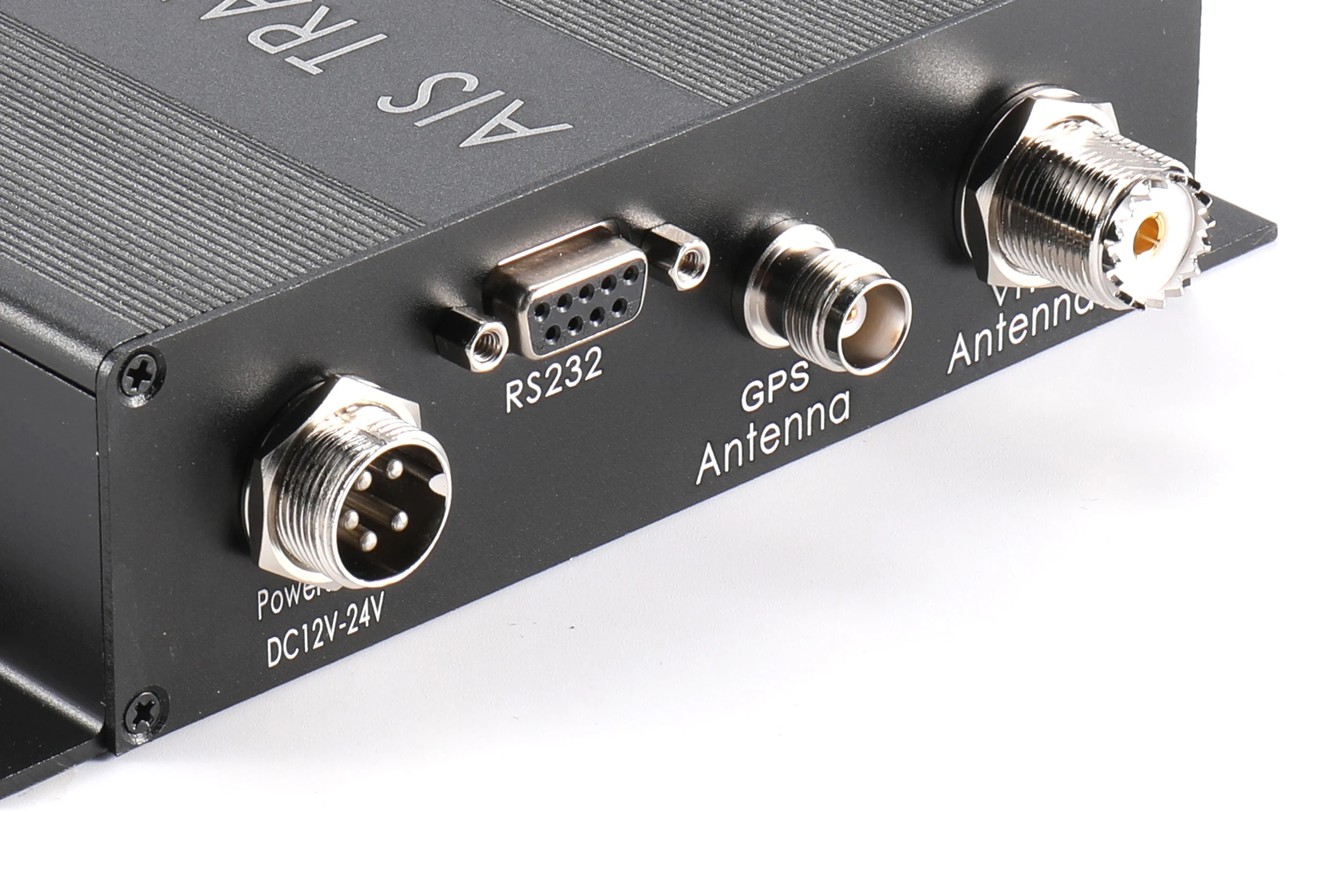

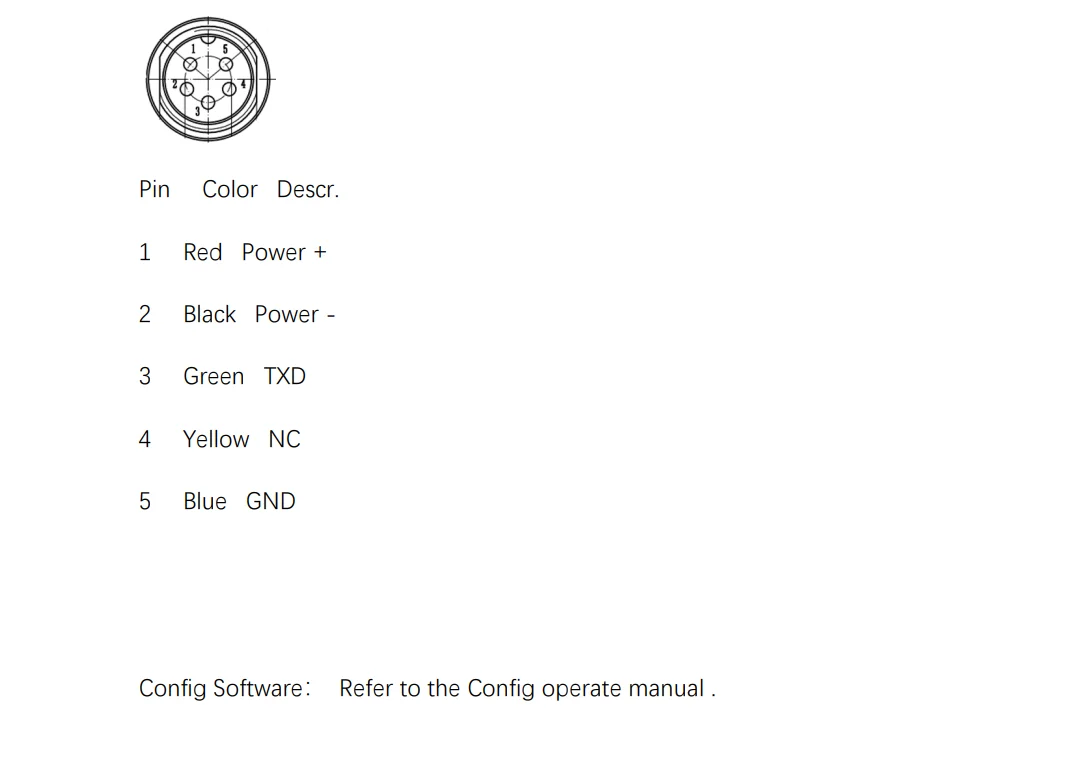

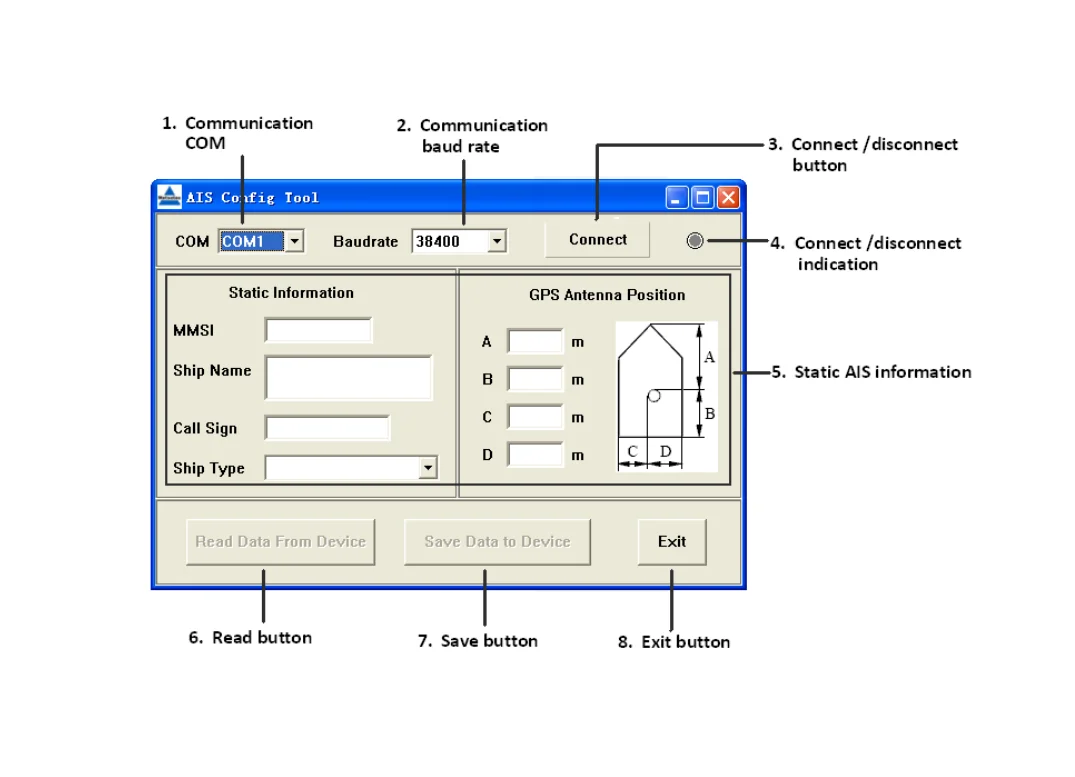

INTERFACE
|
Ports |
NMEA 0183 / RS-422 / RS-232 |
|
GPS Antenna ( Optional ) |
Female TNC Connector |
|
VHF Antenna ( Optional ) |
Female Type M Connector |
|
|
( Type N Connector optional ) |
ENVIROMENT
|
Operating Temperature |
Antenna : -25 ~ 70 C Celcius |
|
|
Others : -15 ~ 55 C Celcius |
|
Storage Temperature |
-25 ~ 70 C Celcius |
|
Humidity |
Operating: 0 ~ 95 RH at 40 C Celcius |
|
|
GPS Antenna operating : 100% Hermetically sealed |
|
|
VHF Antenna operating : 100% Hermetically sealed |
|
Vibration |
IEC 60945 |
|
Waterproof |
IPX5 |

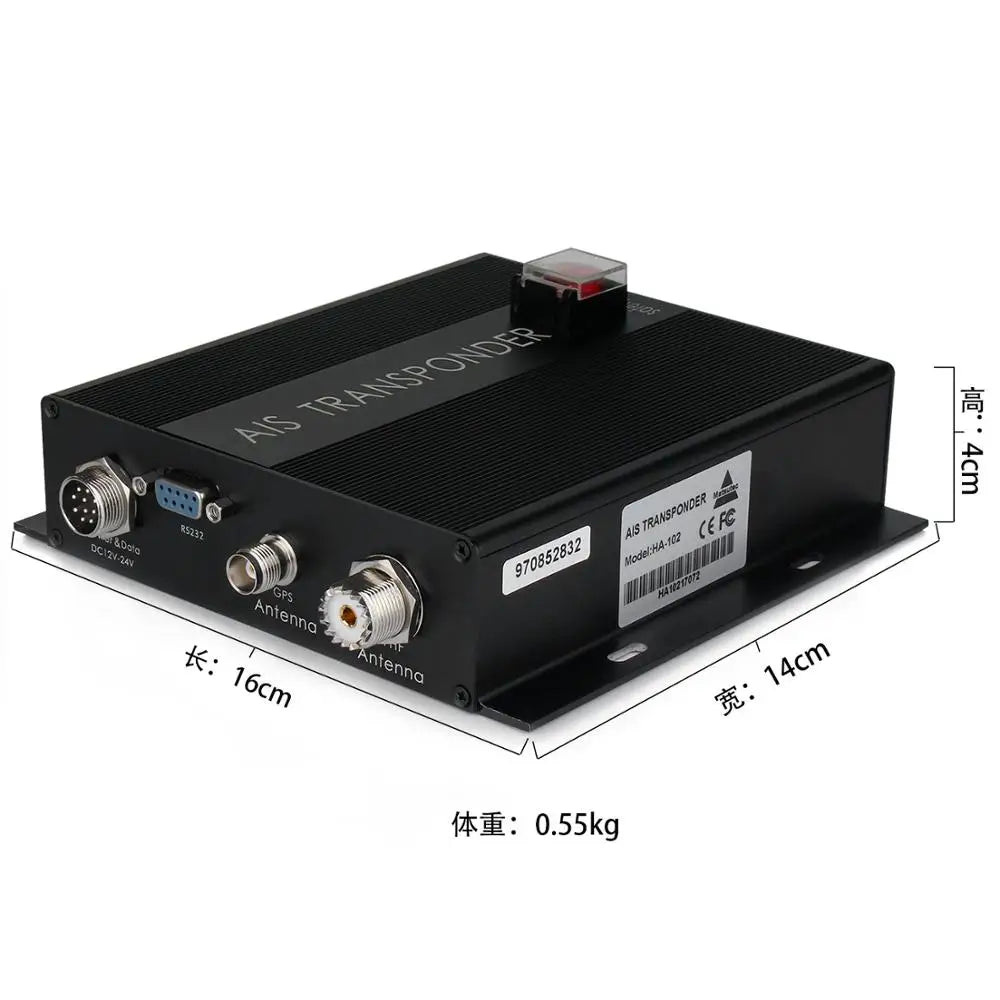

PHYSICAL
|
Size in mm ( W ) |
234mm |
|
Size in mm ( H ) |
40mm |
|
Size in mm ( D ) |
167mm |
|
Weight |
<1 Kg |
